Frame | Full Integratted Battery, Alloy Triple Butted, 12x148 Boost, Horst Link 4, Wheel travel: 150 mm, Tire clearance 29 x 2.6 |
 |
Fork | Rock Shox 35 Silver R 29" Boost 15x110mm 160mm E-MTB Tapered Steerer |
 |
Shock | Rock Shox Deluxe Select R 205x65 Debonair Tune Trunnion |
 |
Headset | FSA Orbit 1,5 E ZS 1-1/8” 1,5” |
 |
Motor | Shimano EP801 / 85 Nm |
 |
Battery | Integrated LI-ION Battery, 630 Wh |
 |
Rear Derailleur | Sram SX Eagle 12s |
 |
Shifters | Sram SX Eagle 12s |
 |
Crankset | Sram Chainring 36T |
 |
Cassette | Sram SX Eagle 12s 11-50t |
 |
Brakes | Shimano MT420 hydraulic disc 4-Piston, 203mm |
 |
Tires | Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection |
 |
Hubs | Boost System 15x110 12x148, E-Bike+ |
 |
Wheels | 29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready |
 |
Stem | 3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º |
 |
Seatpost | Megamo Ø30,9mm Dropper post, remote adjustment |
 |
Seat | Sellie Italia Model X Superflow |
We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials. |

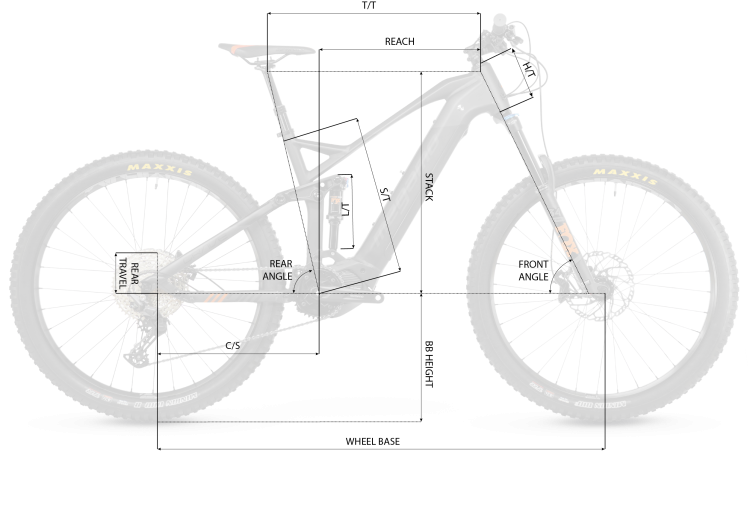

| S | M | L | |
|---|---|---|---|
| SIZE | 16 | 18 | 20 |
| T/T | 600 | 620 | 644 |
| C/S | 465 | 465 | 465 |
| S/T | 406 | 457 | 508 |
| H/T | 135 | 140 | 145 |
| REACH | 431 | 450 | 474 |
| STACK | 630 | 634 | 639 |
| BB HEIGHT | 370 | 370 | 370 |
| FRONT ANGLE | 65,3º | 65,3º | 65,3º |
| REAR ANGLE | 75º | 75º | 75º |
| L/T | 205x65 TR | 205x65 TR | 205x65 TR |
| REAR TRAVEL | 150 | 150 | 150 |
| WB | 1232 | 1253 | 1279 |
