1. Select model and size

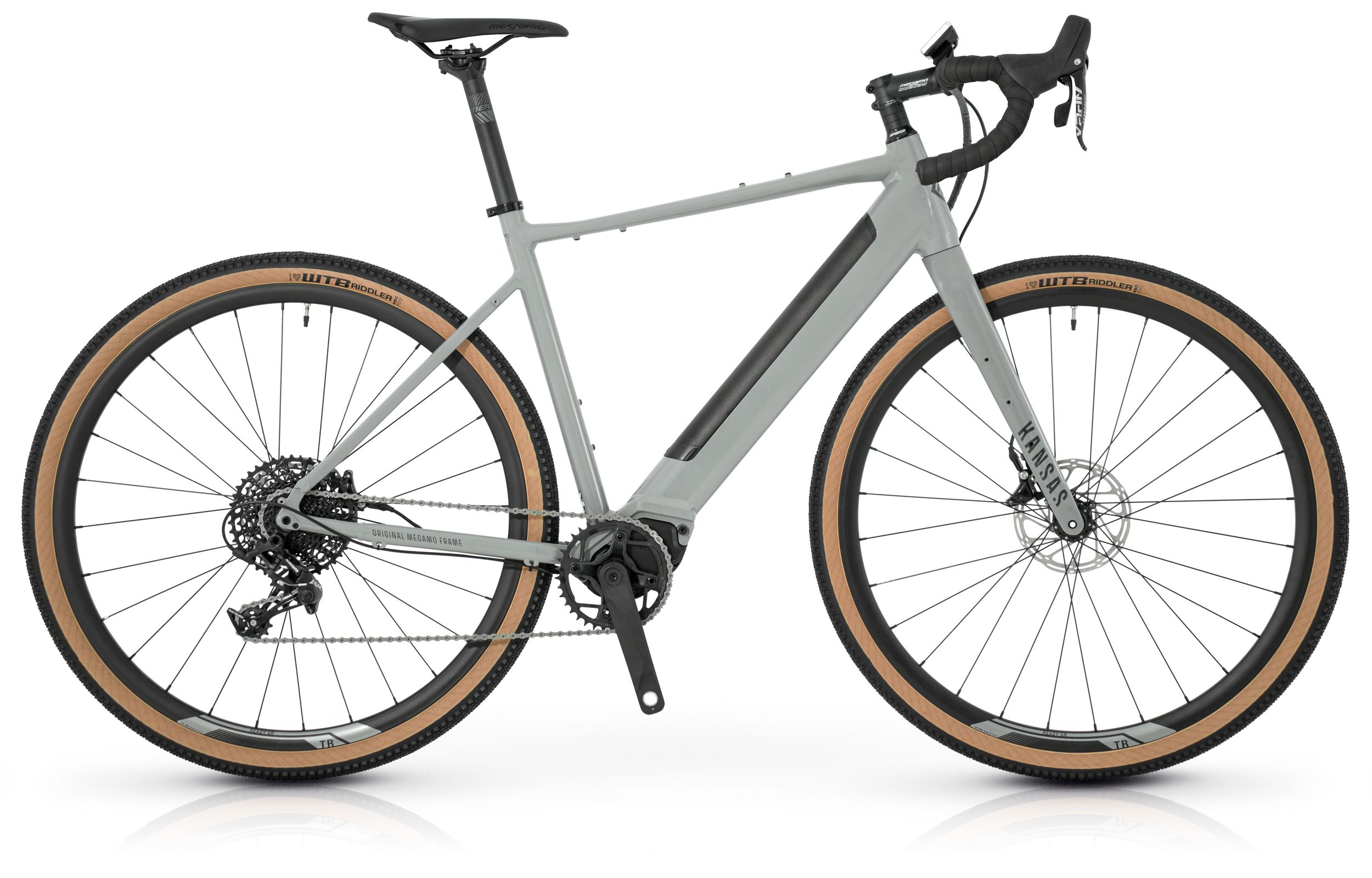

	Meteor Grey (Shining) L Out of stock
	Kansas Blue L Out of stock

2. Related Products

2.384 €

KANSAS

KEY FEATURES
· Aluminium frame with fully integrated battery specific e-Gravel with central motor and internal wiring
· Carbon fork with flat mount
· SRAM Apex 1x11s drivetrain
· SRAM Apex brakes
· 200W and 65Nm central motor
· Integrated 36V and 504 Wh battery

SizeS M L

Buy Compare model

Features Components Geometry

Features KANSAS

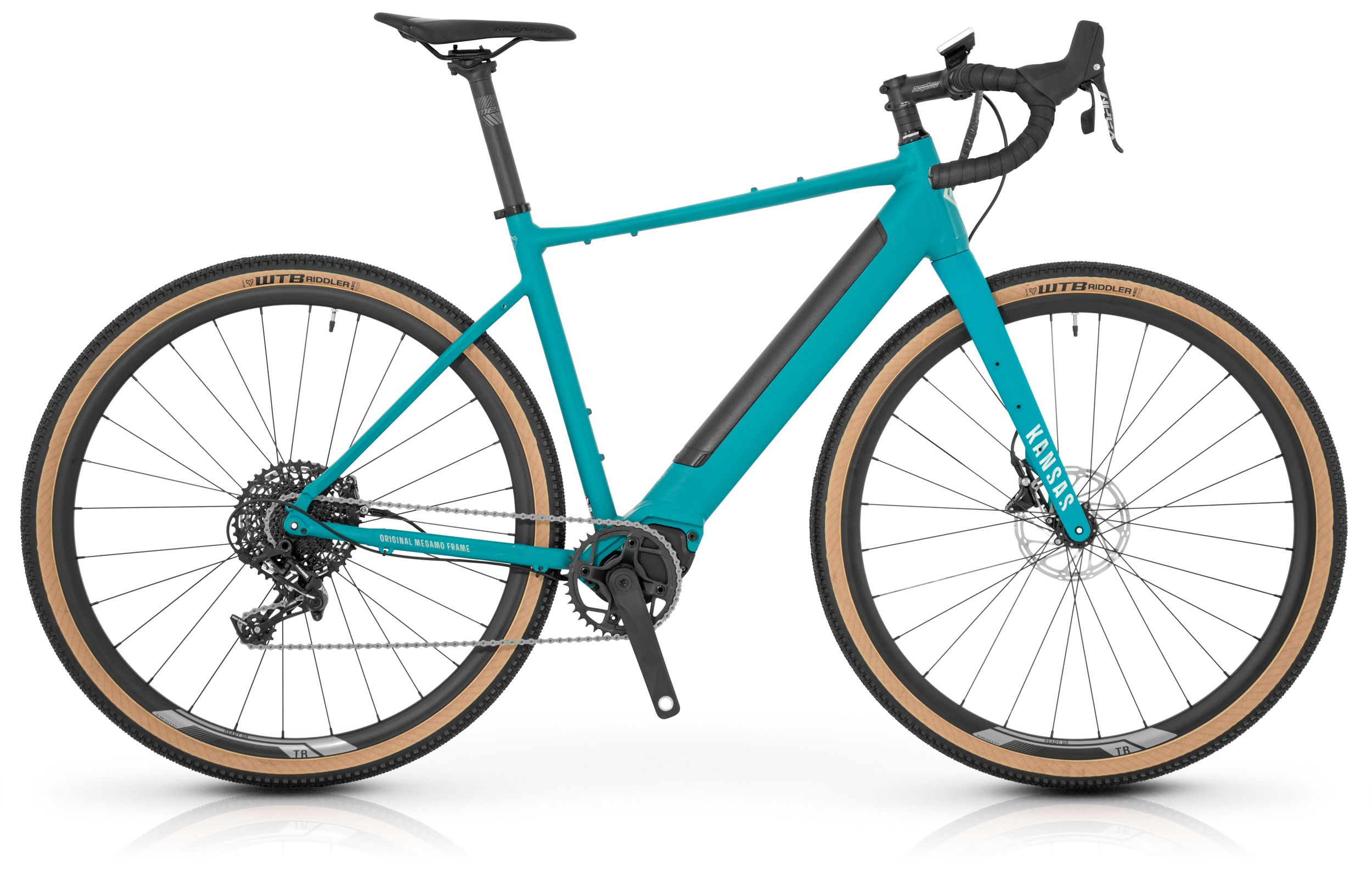

KANSAS BLUE

Technical information

Frameset

	Frame	Aluminium e-Gravel frame, Central motor, Hydroformed Technology, Internal Cable Routing, Flat Mount Disc 12x142
	Fork	Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
	Headset	FSA Tapered

Electronic components

	Motor	Megamo e-Gravel central motor 200W 65Nm
	Battery	integrated (Li-Ion) 36v - 14 Ah - 504 Wh
	Display	Megamo LCD Screen

Drivetrain

	Rear Derailleur	Sram Apex1 1x11s
	Shifters	Sram Apex1 1x11s
	Crankset	FSA 38T
	Cassette	Sram Apex1 1x11s 11-42t

Brakes

Brakes

Sram Apex1 1x11s

Wheels

	Tires	WTB Riddler 700 x 45c Tan Sidewall
	Hubs	Formula CL712 - RXC400 Alloy 12x100 / 12x142
	Wheels	Megamo Gravel GR 700 - TLR

Components

	Handlebar	Megamo Specific Gravel HB FOV Compact
	Stem	Megamo FOV
	Seatpost	Megamo 30,9mm
	Seat	Sellie Italia Model X Superflow

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry KANSAS

S M L

A

T/T 540 560 580

B

C/S 455 455 455

C

S/T 470 520 570

D

H/T 160 160 210

E

REACH 372.84 386.16 384.77

F

STACK 581.05 584.99 636.6

G

FRONT ANGLE 71º 72º 73º

H

REAR ANGLE 74º 73.5º 73º

I

WHEEL BASE 1053.7 1058 1062.1

J

BB DROP 65 65 65

K

FRONT WHEEL BB 606.9 611.2 615.2

FIT GUIDE SMALL

150 - 170

MEDIUM

165 - 180

LARGE

175 - 210
