1. Select model and size

29" - Bullet Copper

2. Related Products

8.349 €

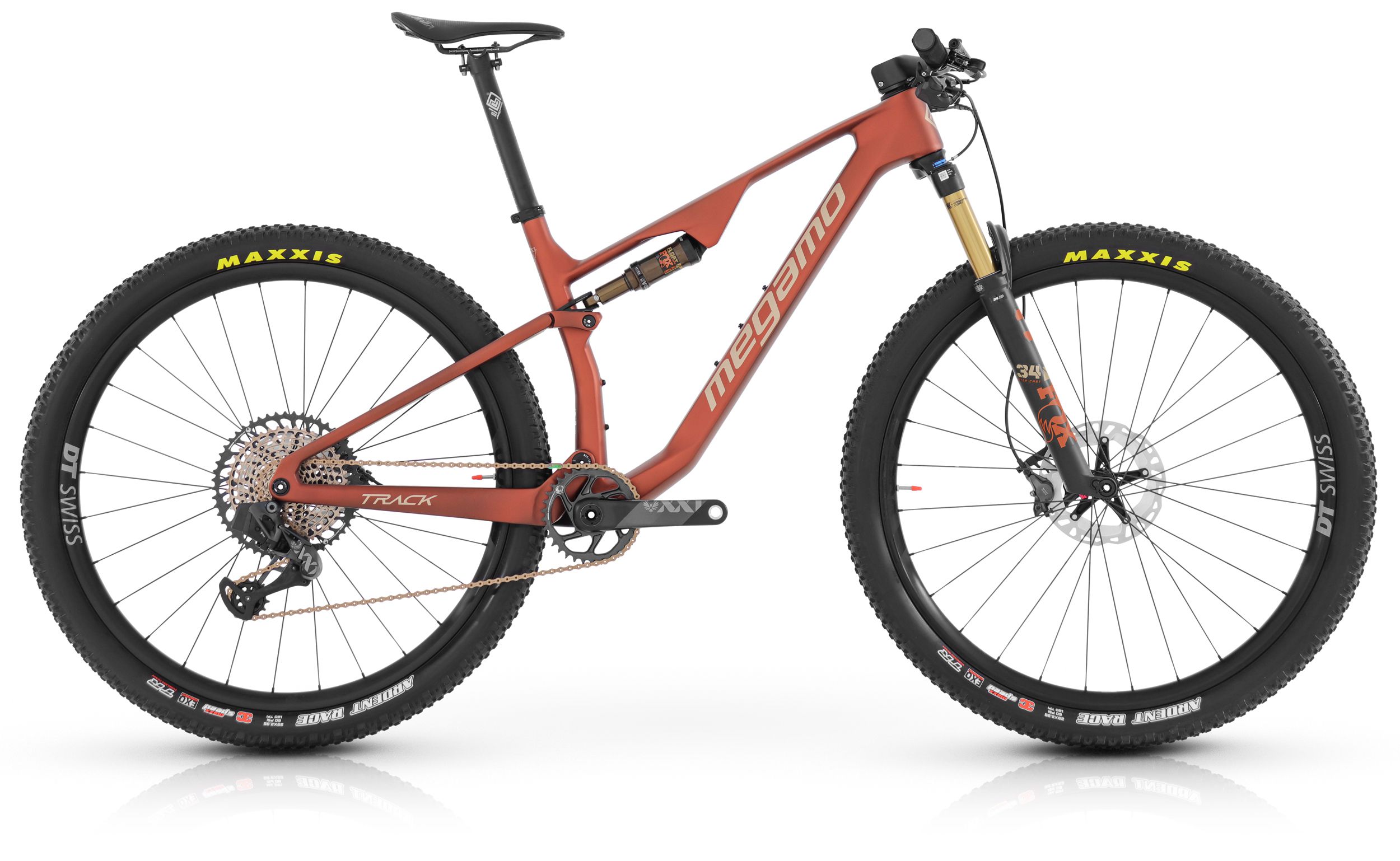

TRACK AXS 00 (23)

KEY FEATURES
· new frame Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm SuperLight version
· Fork Fox 34 100mm Factory StepCast Kashima
· Rear Shock Fox DPS Factory Kashima, 100mm Travel 190x40, 3 positions Remote Lockout control
· Sram XX1 AXS 12-speed
· Wheels DT Swiss XRC 1200 Carbon 30
· Brakes Shimano XT 8100
· Integrated Megamo carbon handlebar

Wheel29"SizeSMLXL
Buy Compare model
Comparator of models

Technical information

Frameset
Frame New Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm SuperLight version
Fork Fox 34 Factory StepCast Kashima FIT4 100mm Remote Lockout, 15x110 Boost
Shock Fox Float DPS Factory Kashima, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 100mm 190x40mm
Headset Integrated Full Internal Cable Routing
Drivetrain
Rear Derailleur Sram XX1 AXS 12s
Shifters Sram Eagle AXS Controller
Crankset Sram XX1 AXS 12s 34t
Cassette Sram XX1 AXS 12s 10-52t
Brakes
Brakes Shimano XT 8100
Wheels
Tires Maxxis Rekon Race 29x2,35 - Tubeless Ready, EXO, Foldable, 120tpi
Pirelli Scorpion XC H 29x2,4 ProWall - Tubeless Ready, 120tpi
Hubs DT Swiss 180 Ratchet EXP 36
Wheels DT Swiss XRC 1200
Components
Handlebar Full Integrated Carbon handlebar Megamo
Seatpost Megamo Elite Light SP 31,6
Seat Selle Italia SLR Boost X-Cross Superflow

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry TRACK AXS 00 (23)

    S M L XL
A
S/T 422 441 482 520
B
T/T 559 584 610 643
C
H/T angle 67.5º 67.5º 67.5º 67.5º
D
s/T angle 76.7º 76.7º 76.7º 76.7º
E
wheelbase 1124 1149 1180 1213
F
C/S 431 431 431 431
G
h/t 96 96 111 130
H
BB DROP 43 43 43 43
I
fork rake 44 44 44 44
J
FORK HEIGHT (0% sag) 530 530 530 530
K
FORK HEIGHT (20% sag) 506 506 506 506
L
FRONT WHEEL - BB 695 720 751 784
M
REACH 420 444 469 495
N
STACK 592 592 605 624
