1. Select model and size

29" - Black
29" - Pagoda Blue

2. Related Products

3.249 €

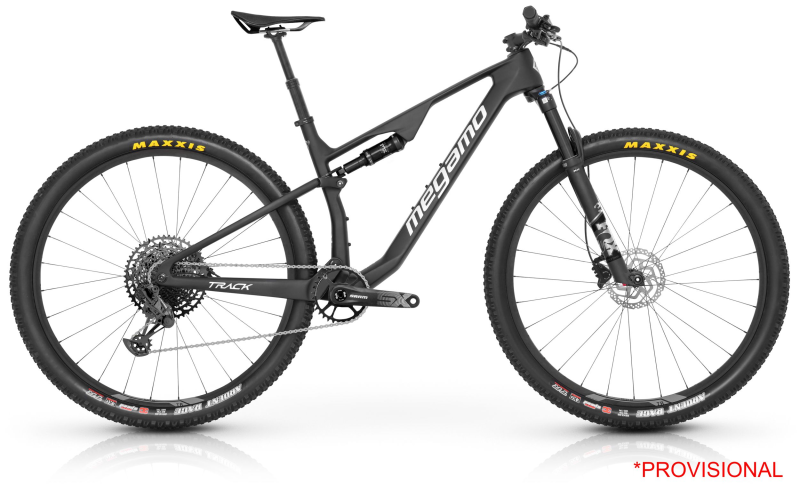

TRACK R120 10 (23)

KEY FEATURES
· new frame Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm
· Fork Fox 34 Rhythm 120mm Travel, Remote Lockout, 15x110 Boost
· Rear Shock Fox DPS Performance Elite, 120mm Travel 190x45, 3 positions Remote Lockout control
· Sram SX 12-speed
· Wheels Ready GR 25 TR - 15x110 / 12x148 Boost
· Brakes Shimano MT-500 Hydraulic Disc
· Dropper post 31,6 internal cable routing, remote
Wheel29"SizeSMLXL
Buy Compare model
Comparator of models

Technical information

Frameset
Frame new Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm
Fork Fox 34 Rhythm 120mm Travel, Remote Lockout, 15x110 Boost
Shock Fox Float DPS Performance Elite, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 120mm 190x45mm
Headset Integrated Full Internal Cable Routing
Drivetrain
Rear Derailleur Sram SX Eagle 12s
Shifters Sram SX Eagle 12s
Crankset Sram SX Eagle 12s 32t
Cassette Sram SX Eagle 12s 11-50t
Brakes
Brakes Shimano MT-500 Hydraulic Disc
Wheels
Tires Maxxis Ardent Race 29x2,35 - Tubeless Ready, EXO, 3C Maxx Speed, Foldable, 120tpi
Pirelli Scorpion XC H 29x2,4 ProWall - Tubeless Ready, 120tpi
Hubs 15x110 Boost / 12x148 Boost
Wheels Ready GR 25 TR - 15x110 / 12x148 Boost
Components
Handlebar Megamo Alloy 31,8
Stem Megamo Alloy 31,8
Seatpost Telescopic Dropper post 31,6 internal cable routing, remote
Seat Sellie Italia Model X Superflow

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

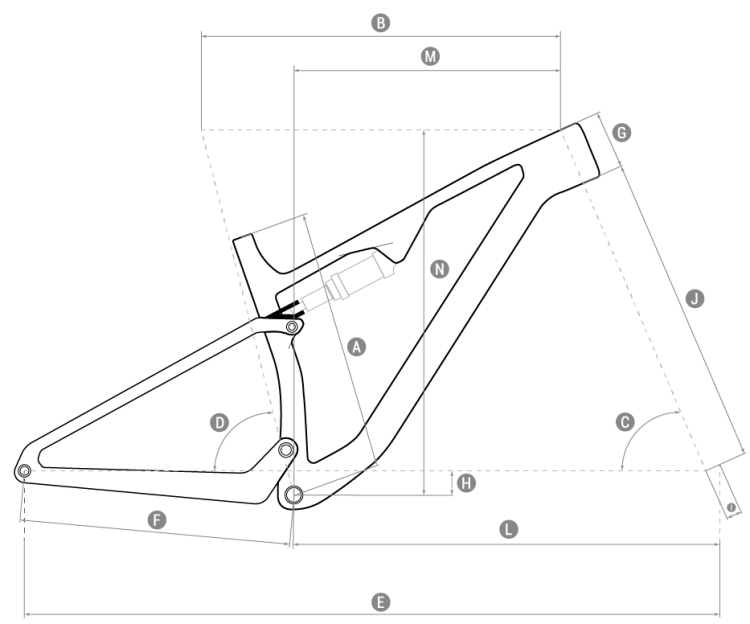

Geometry TRACK R120 10 (23)

    S M L XL
A
S/T 422 441 482 520
B
T/T 563 588 617 647
C
H/T angle 66.5º 66.5º 66.5º 66.5º
D
s/T angle 75.6º 75.6º 75.6º 75.6º
E
wheelbase 1132 1157 1188 1221
F
C/S 431 431 431 431
G
h/t 96 96 111 130
H
BB DROP 36 36 36 36
I
fork rake 44 44 44 44
J
FORK HEIGHT (0% sag) 510 510 510 510
K
FORK HEIGHT (20% sag) 490 490 490 490
L
FRONT WHEEL - BB 702 727 758 791
M
REACH 410 435 460 485
N
STACK 599 599 613 630
