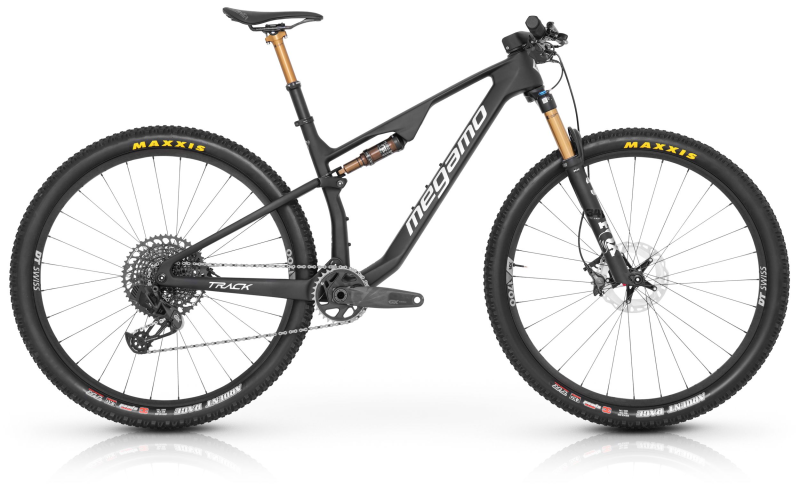

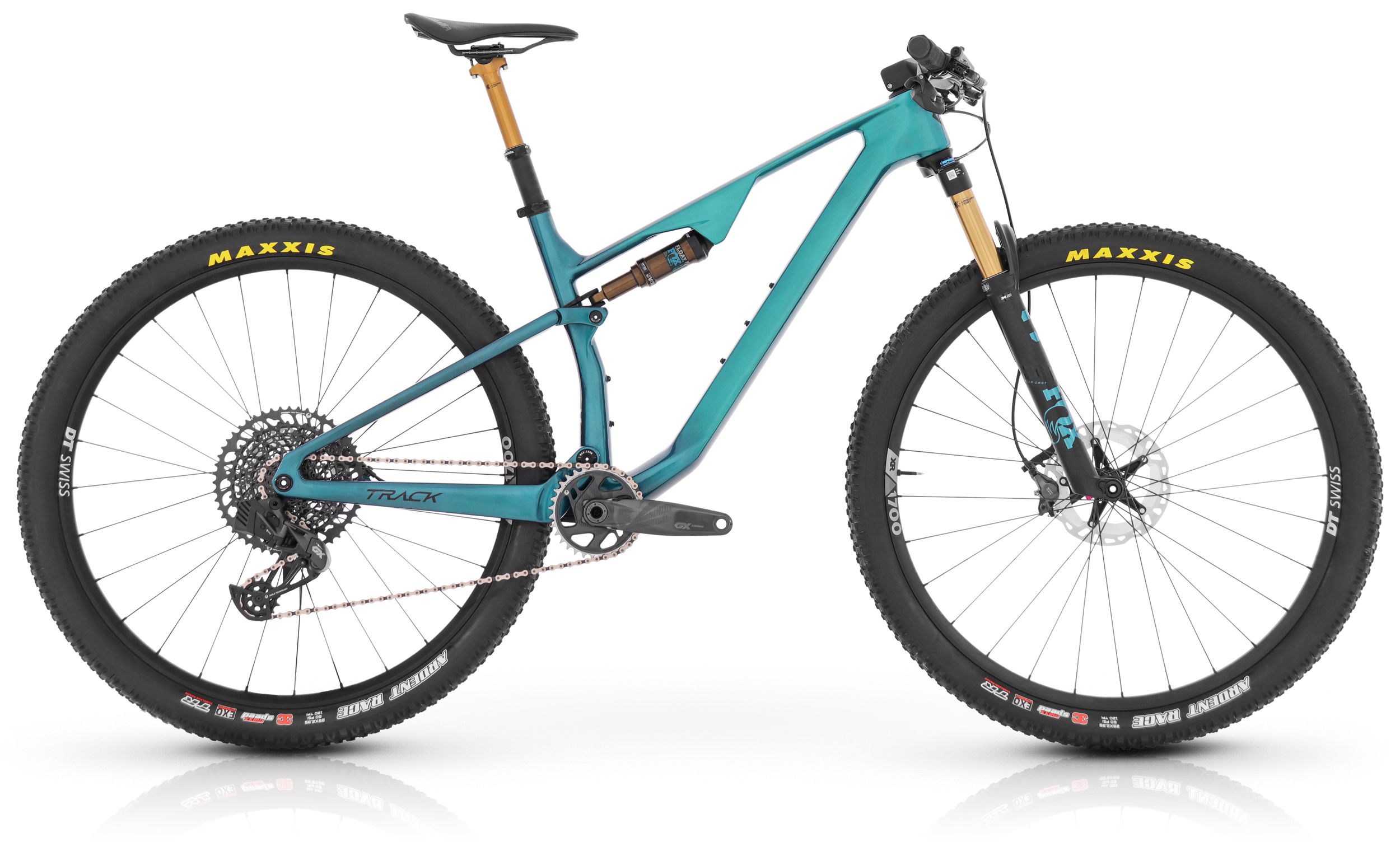

TRACK R120 AXS RACE 2023

KEY FEATURES
· New frame Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm
· Fork Fox 34 120mm Factory StepCast Kashima
· Rear Shock Fox DPS Factory Kashima, 120mm Travel 190x45, 3 positions Remote Lockout control
· Sram GX AXS 12-speed
· Wheels DT Swiss XR 1700
· Brakes Shimano XT 8100
· Dropper post Fox Transfer SL Kashima with internal cable routing
· Integrated Megamo carbon handlebar
Price0 €
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm
Fork Fox 34 Factory StepCast Kashima FIT4 120 mm Remote Lockout, 15x110 Boost
Shock Fox Float DPS Factory Kashima, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 120mm 190x45mm
Headset Integrated Full Internal Cable Routing
Drivetrain
Rear Derailleur Sram GX AXS 12s
Shifters Sram Eagle AXS Controller
Crankset Sram GX Eagle 12s 32t
Cassette Sram GX Eagle 12s 10-52t
Brakes
Brakes Shimano XT 8100
Wheels
Tires Maxxis Ardent Race 29x2,35 - Tubeless Ready, EXO, 3C Maxx Speed, Foldable, 120tpi
Pirelli Scorpion XC H 29x2,4 ProWall - Tubeless Ready, 120tpi
Wheels DT Swiss XR 1700
Components
Handlebar Full Integrated Carbon handlebar Megamo
Seatpost Fox Transfer SL Factory Kashima 31,6. Internal routing, remote.
Seat Selle Italia Novus Boost Evo Superflow

*Due to ongoing problems and delays in the supply chain, Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry TRACK R120 AXS RACE (23)

    S M L XL
A
S/T 422 441 482 520
B
T/T 563 588 617 647
C
H/T angle 66.5º 66.5º 66.5º 66.5º
D
s/T angle 75.6º 75.6º 75.6º 75.6º
E
wheelbase 1132 1157 1188 1221
F
C/S 431 431 431 431
G
h/t 96 96 111 130
H
BB DROP 36 36 36 36
I
fork rake 44 44 44 44
J
FORK HEIGHT (0% sag) 510 510 510 510
K
FORK HEIGHT (20% sag) 490 490 490 490
L
FRONT WHEEL - BB 702 727 758 791
M
REACH 410 435 460 485
N
STACK 599 599 613 630
