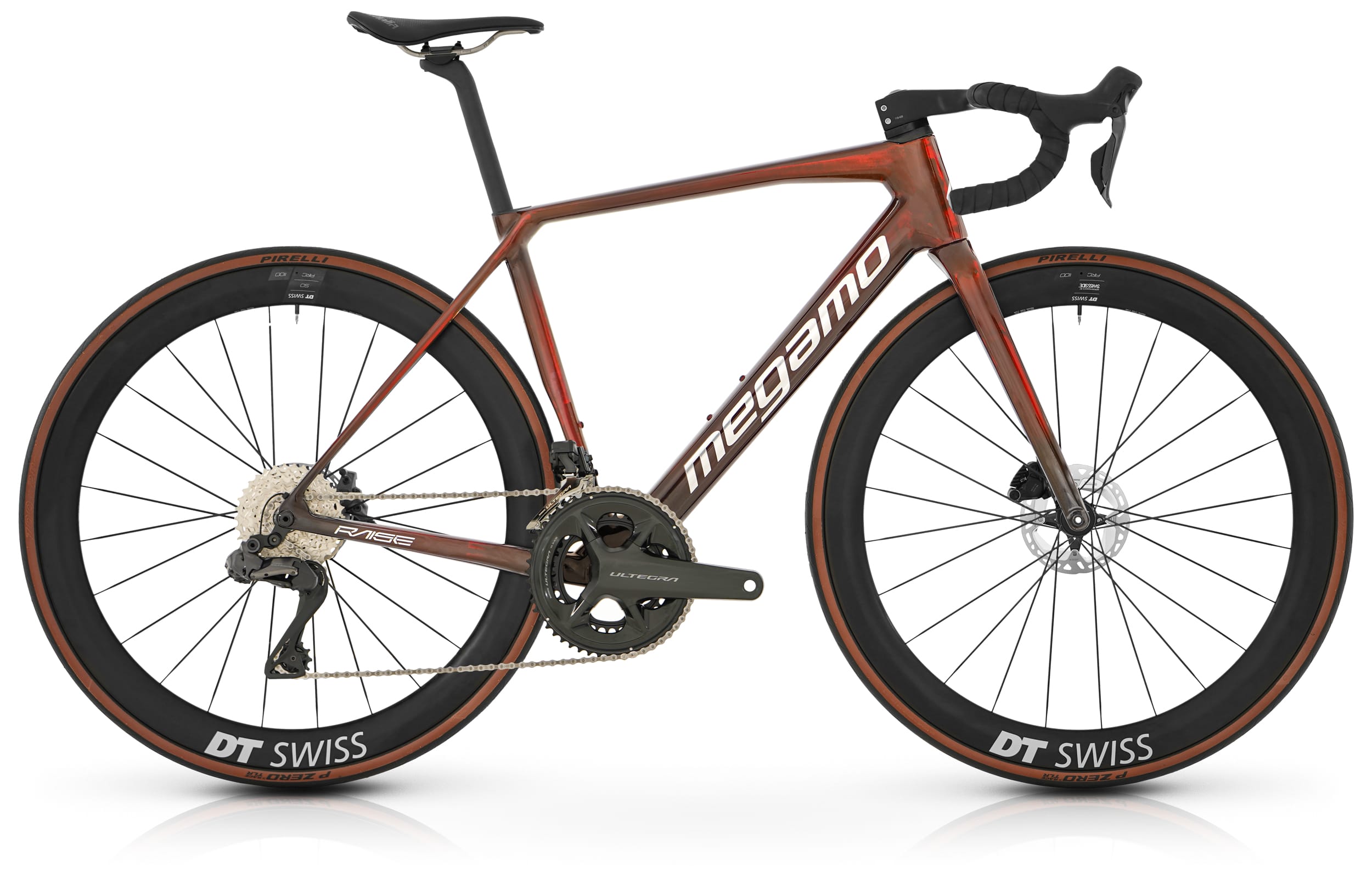

RAISE 03 SH12 2023

KEY FEATURES
· Ultra light carbon frame with fully internal wiring
· Shimano Ultegra Di2 12s transmission
· DT Swiss ARC 1100 50 / Mavic Cosmic SLR 45 wheels

SizeXS S M L XL

Price5.747 €

DON´T KNOW WHAT SIZE YOU NEED?

Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.

Calculate your size

Find your store Compare model

Components Geometry Calculate your size

Technical information

Frameset

	Frame	Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
	Fork	Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
	Headset	Totally Internal Cable routing

Drivetrain

	Rear Derailleur	Shimano Ultegra Di2 R8150 12s
	Derailleur	Shimano Ultegra Di2 R8150 12s
	Shifters	Shimano Ultegra Di2 R8150 12s
	Crankset	Shimano Ultegra Di2 R8100-P 12s 52-36T Powermeter
	Cassette	Shimano Ultegra Di2 R8100 12s 11-34T

Brakes

Shimano Ultegra Di2 R8170 12s Hydraulic Disc

Wheels

	Tires	Pirelli P Zero RC TLR Classic / Vittoria Rubino Pro IV 700x28 TLR G2.0
	Hubs	DT Swiss ARC 1100 50
	Wheels	DT Swiss ARC 1100 50

Components

	Handlebar	Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
	Seatpost	Aerodinamic Advanced Carbon Seat Post
	Seat	Selle Italia Novus Boost Evo Superflow

*Due to ongoing problems and delays in the supply chain, Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry RAISE 03 SH12 (23)

		XS	S	M	L	XL
A	T/T	507	523	541	559	576
B	C/S	405	405	405	405	405
C	S/T	422	453	473	499	525
D	H/T	103	116	135	156	176
E	REACH	357	369	381	393	405
F	STACK	505	522	541	560	580
G	BB HEIGHT	270	270	270	270	270
H	FRONT ANGLE	70,5º	72º	72º	72º	72º
I	REAR ANGLE	73,5º	73,5º	73,5º	73,5º	73,5º

HANDLEBAR AND STEM INTEGRATED:

	XS	S	M	L	XL
90/400		-	-	-	-
100/400	-		-	-	-
110/420	-	-			-
120/440	-	-	-	-

FIT GUIDE
X-SMALL	158 - 168
SMALL	165 - 172
MEDIUM	170 - 182
LARGE	182 - 190
X-LARGE	188 - 210
