1. Select model and size

Sky Grey

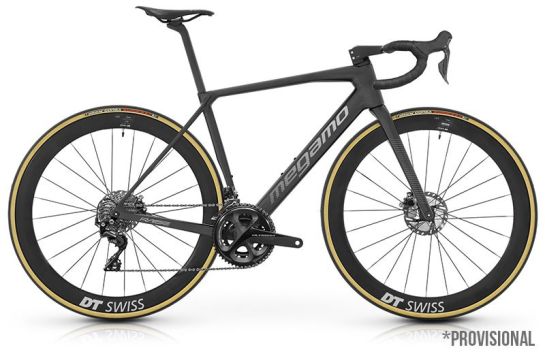

Black

2. Related Products

2.749 €

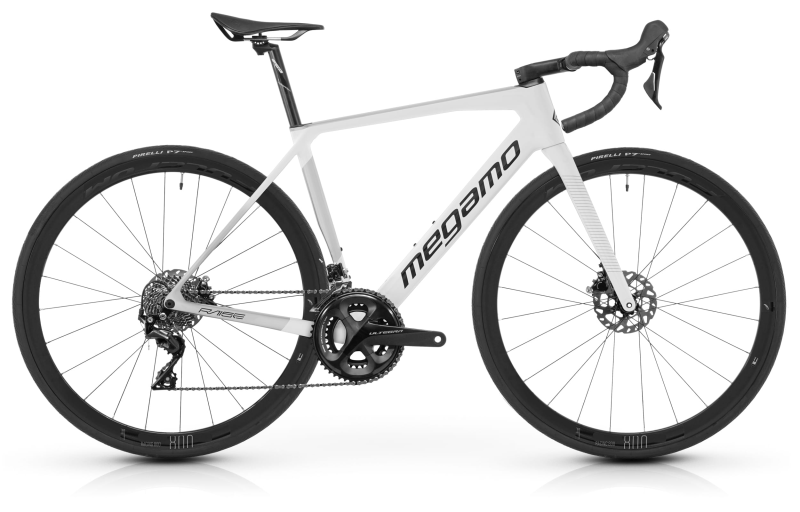

RAISE 10 (23)

KEY FEATURES
· Ultra-light carbon frame with fully internal cabling
· Shimano Ultegra 11 speed
· Vision Team 35 Disc Wheels

* The Raise 10 and Raise 20 mounts do not have the wiring integrated into the handlebar.
SizeXSSMLXL
DON'T KNOW WHAT SIZE YOU NEED?
Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.
Calculate your size
CALCULATE YOUR SIZE
Tell us some basic information, we recommend the most appropriate size for your measurements.
I am a...
/
Fill the field
This result is indicative, if you want a more specific setting we recommend making a fitting with experts.
Previous Next Contact us
Contact your dealer if you need advice
Buy Compare model
Comparator of models

Technical information

Frameset
Frame Carbon Advanced Composite frame, Full Internal Cable Routing, Flat Mount Disc Brakes 12x142
Fork Carbon Advanced Composite fork, Full Internal Cable Routing, Flat Mount Disc Brakes 12x100
Headset Integrated Internal Routing, 3 positions, 3 different heights
Drivetrain
Rear Derailleur Shimano Ultegra R8000 11s
Derailleur Shimano Ultegra R8000 11s
Shifters Shimano Ultegra R8020 11s
Crankset Shimano Ultegra R8000 11s 52-36
Cassette Shimano Ultegra R8000 11-30t 11s
Brakes
Brakes Shimano Ultegra R8020 11s Hydraulic Disc
Wheels
Tires Pirelli Road P7 700x26 / Vittoria Zaffiro V 700x25
Hubs Vision Team 35 Disc 12x100 / 12x142
Wheels Vision Team 35 Disc
Components
Handlebar Megamo Fov Compact
Stem Integrated Internal Routing
Seatpost Megamo 27,2mm
Seat Sellie Italia Model X Superflow

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry RAISE 10 (23)

    XS S M L XL
A
 T/T 507 523 541 559 576
B
 C/S 405 405 405 405 405
C
 S/T 422 453 473 499 525
D
 H/T 103 116 135 156 176
E
 REACH 357 369 381 393 405
F
 STACK 505 522 541 560 580
G
 BB HEIGHT 270 270 270 270 270
H
 FRONT ANGLE 70,5º 72º 72º 72º 72º
I
 REAR ANGLE 73,5º 73,5º 73,5º 73,5º 73,5º
HANDLEBAR AND STEM INTEGRATED:
    XS S M L XL
  90/400 - - - -
  100/400 - - - -
  110/420 - - -
  120/440 - - - -

FIT GUIDE
X-SMALL
158 - 168
SMALL
165 - 172
MEDIUM
170 - 182
LARGE
182 - 190
X-LARGE
188 - 210
