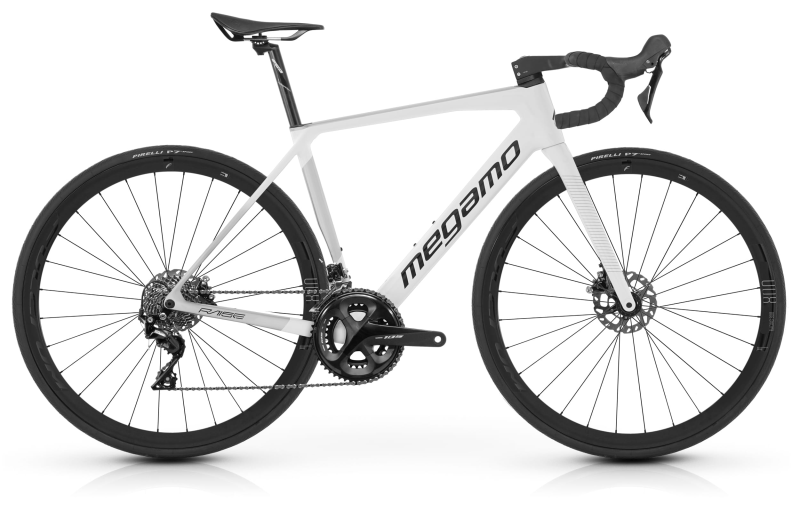

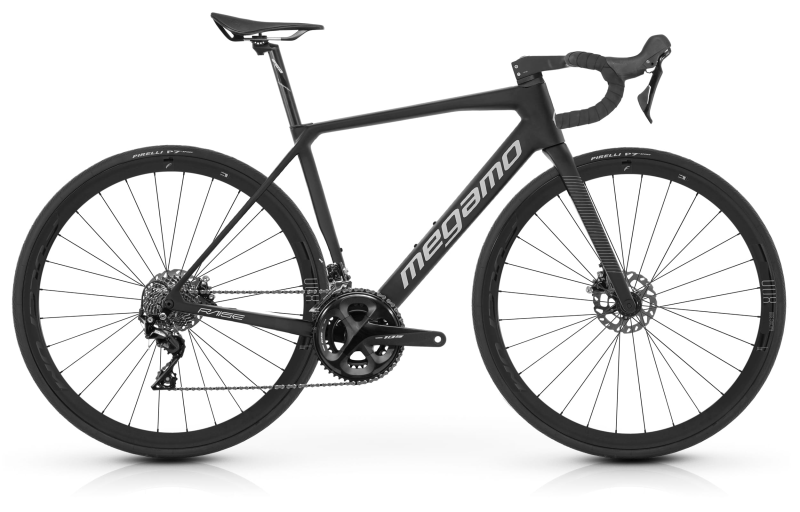

RAISE 20 2023

KEY FEATURES
· Ultra-light carbon frame with fully internal cabling
· Shimano 105 11-speed drivetrain
· Fulcrum Racing 800 DB Wheels

SizeXS S M L XL

Price2.279 €

DON´T KNOW WHAT SIZE YOU NEED?

Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.

Calculate your size

Find your store Compare model

Components Geometry Calculate your size

Technical information

Frameset

	Frame	Carbon Advanced Composite frame, Full Internal Cable Routing, Flat Mount Disc Brakes 12x142
	Fork	Carbon Advanced Composite fork, Full Internal Cable Routing, Flat Mount Disc Brakes 12x100
	Headset	Totally Internal Cable routing

Drivetrain

	Rear Derailleur	Shimano 105 7000 11s
	Derailleur	Shimano 105 7000 11s
	Shifters	Shimano 105 7020 11s
	Crankset	Shimano 105 7000 11s 50/34T
	Cassette	Shimano 105 7000 11-30t 11s

Brakes

Shimano 105 Hydraulic Disc

Wheels

	Tires	Pirelli Road P7 700x26 / Vittoria Zaffiro V 700x25
	Wheels	Fulcrum Racing 800 DB

Components

	Handlebar	Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
	Stem	Integrated Internal Routing
	Seatpost	Megamo 27,2mm
	Seat	Selle Italia Model X

*Due to ongoing problems and delays in the supply chain, Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry RAISE 20 (23)

		XS	S	M	L	XL
A	T/T	507	523	541	559	576
B	C/S	405	405	405	405	405
C	S/T	422	453	473	499	525
D	H/T	103	116	135	156	176
E	REACH	357	369	381	393	405
F	STACK	505	522	541	560	580
G	BB HEIGHT	270	270	270	270	270
H	FRONT ANGLE	70,5º	72º	72º	72º	72º
I	REAR ANGLE	73,5º	73,5º	73,5º	73,5º	73,5º

HANDLEBAR AND STEM INTEGRATED:

	XS	S	M	L	XL
90/400		-	-	-	-
100/400	-		-	-	-
110/420	-	-			-
120/440	-	-	-	-

FIT GUIDE
X-SMALL	158 - 168
SMALL	165 - 172
MEDIUM	170 - 182
LARGE	182 - 190
X-LARGE	188 - 210
