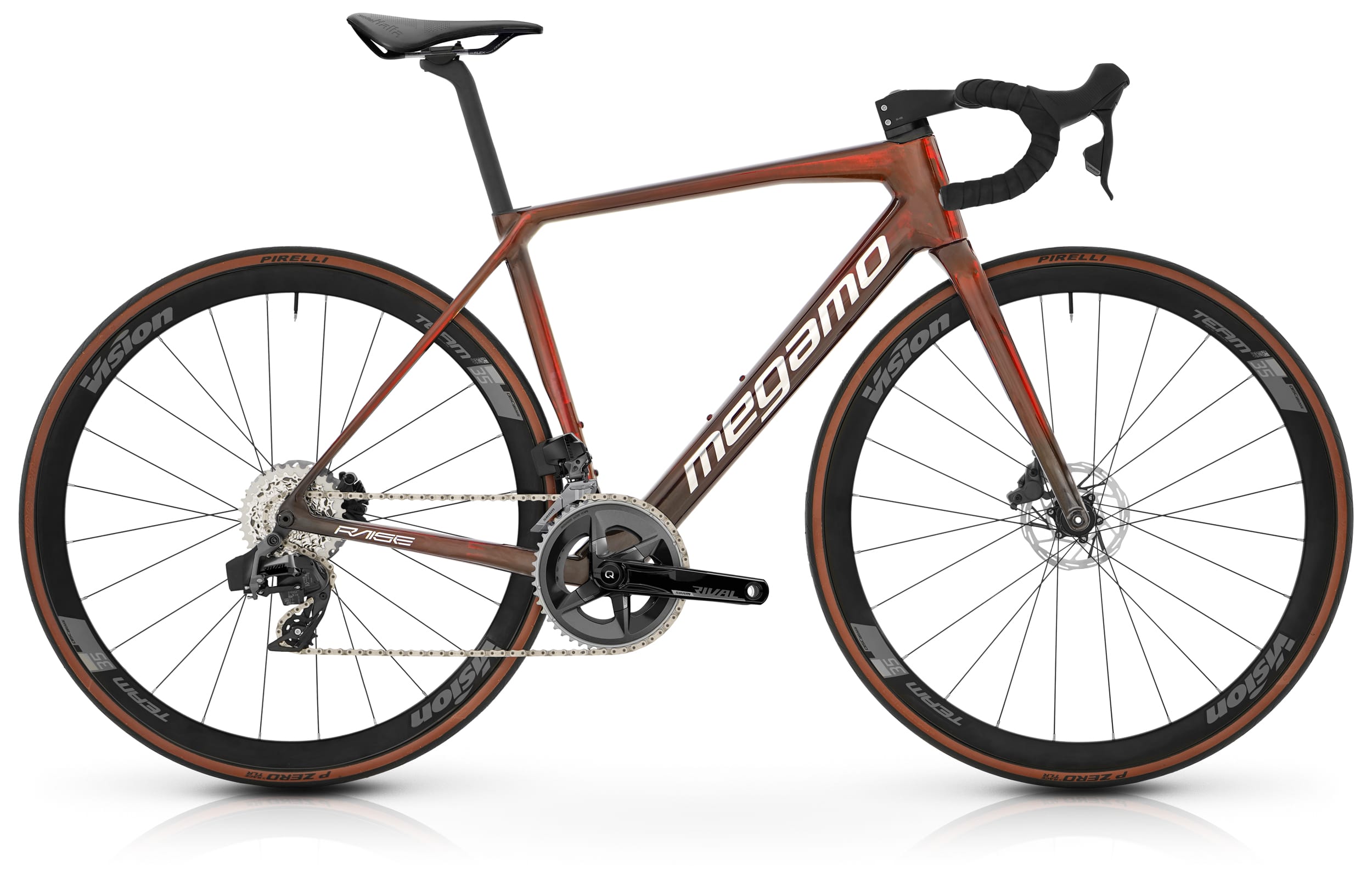

RAISE AXS 09 (23)

KEY FEATURES
· Ultra-light carbon frame with fully internal cabling
· Sram Rival AXS 12s transmission
· Vision Team 35 Disc wheels

SizeXS S M L XL

DON'T KNOW WHAT SIZE YOU NEED?

Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.

Calculate your size

Buy Compare model

Components Geometry Calculate your size

Technical information

Frameset

	Frame	Carbon Advanced Composite frame, Full Internal Cable Routing, Flat Mount Disc Brakes 12x142
	Fork	Carbon Advanced Composite fork, Full Internal Cable Routing, Flat Mount Disc Brakes 12x100
	Headset	Totally Internal Cable routing

Drivetrain

	Rear Derailleur	Sram Rival AXS 12s
	Derailleur	Sram Rival AXS 12s
	Shifters	Sram Rival AXS 12s
	Crankset	Sram Rival AXS 12s 48-35 Powermeter
	Cassette	Sram Rival AXS 12s 10-36t

Brakes

Sram Rival AXS 12s

Wheels

	Tires	Pirelli P Zero RC TLR Classic / Vittoria Rubino Pro IV 700x28 TLR G2.0
	Hubs	Vision Team 35 Disc
	Wheels	Vision Team 35 Disc

Components

	Handlebar	Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
	Seatpost	Megamo 27,2mm
	Seat	Selle Italia Novus Boost Evo Superflow

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry RAISE AXS 09 (23)

		XS	S	M	L	XL
A	T/T	507	523	541	559	576
B	C/S	405	405	405	405	405
C	S/T	422	453	473	499	525
D	H/T	103	116	135	156	176
E	REACH	357	369	381	393	405
F	STACK	505	522	541	560	580
G	BB HEIGHT	270	270	270	270	270
H	FRONT ANGLE	70,5º	72º	72º	72º	72º
I	REAR ANGLE	73,5º	73,5º	73,5º	73,5º	73,5º

HANDLEBAR AND STEM INTEGRATED:

	XS	S	M	L	XL
90/400		-	-	-	-
100/400	-		-	-	-
110/420	-	-			-
120/440	-	-	-	-

FIT GUIDE
X-SMALL	158 - 168
SMALL	165 - 172
MEDIUM	170 - 182
LARGE	182 - 190
X-LARGE	188 - 210
