1. Select model and size

Sky Grey
Alpha Red
Black

2. Related Products

4.299 €

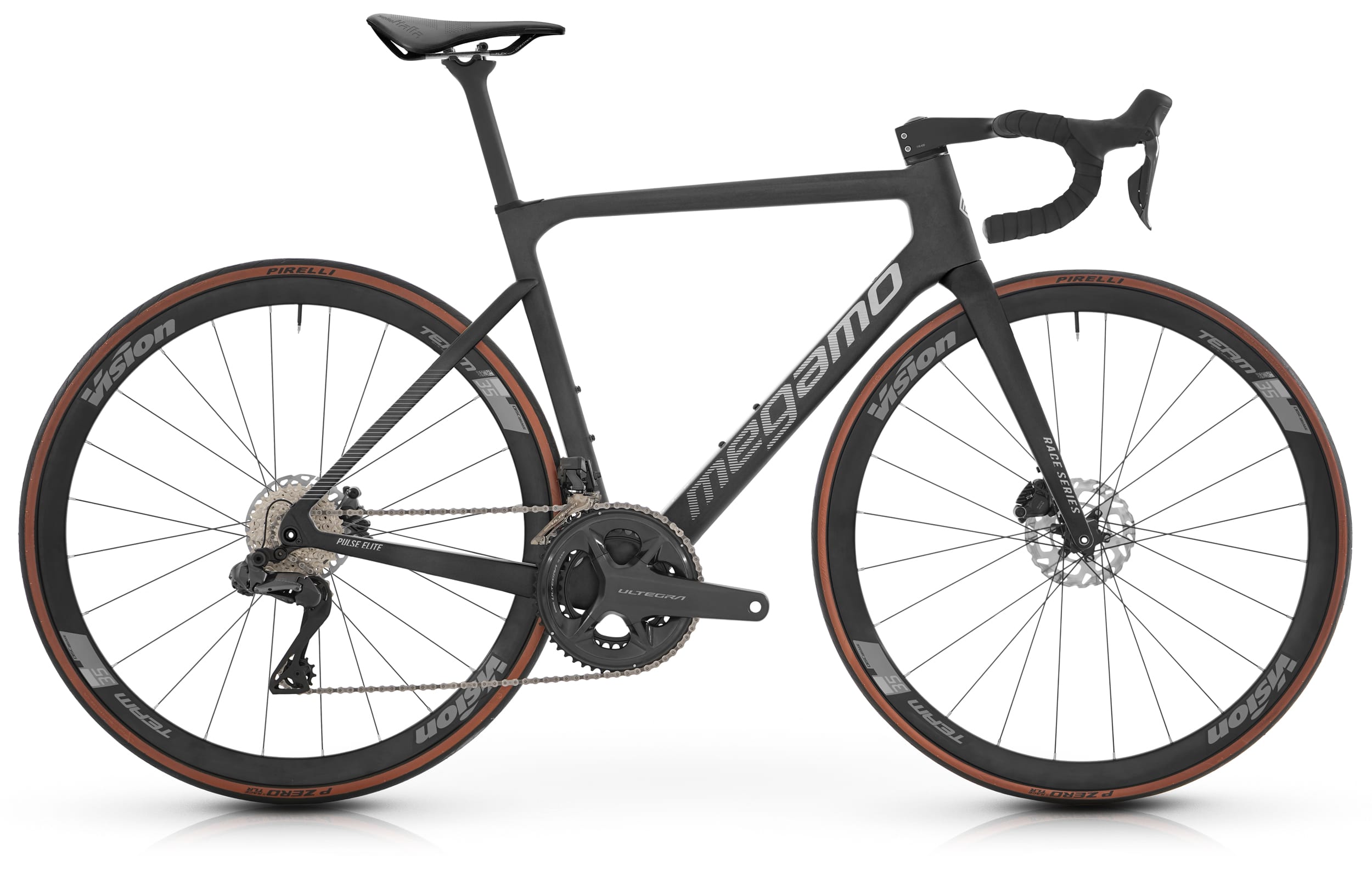

PULSE ELITE 05 SH12 (23)

KEY FEATURES
· Ultra-light carbon frame with fully internal cabling
· Shimano Ultegra Di2 12 speeds transmission
· Vision Team 35 Disc wheels
SizeXSSMLXL
DON'T KNOW WHAT SIZE YOU NEED?
Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.
Calculate your size
CALCULATE YOUR SIZE
Tell us some basic information, we recommend the most appropriate size for your measurements.
I am a...
/
Fill the field
This result is indicative, if you want a more specific setting we recommend making a fitting with experts.
Previous Next Contact us
Contact your dealer if you need advice
Buy Compare model
Comparator of models

Technical information

Frameset
Frame Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
Fork Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Headset Totally Internal Cable routing
Drivetrain
Rear Derailleur Shimano Ultegra Di2 R8150 12s
Derailleur Shimano Ultegra Di2 R8150 12s
Shifters Shimano Ultegra Di2 R8150 12s
Crankset Shimano Ultegra Di2 R8100 12s 52-36T
Cassette Shimano Ultegra Di2 R8100 12s 11-30T
Brakes
Brakes Shimano Ultegra Di2 R8170 12s Hydraulic Disc
Wheels
Tires Pirelli P Zero RC TLR Classic / Vittoria Rubino Pro IV 700x28 TLR G2.0
Hubs Vision Team 35 Disc 12x100 / 12x142
Wheels Vision Team 35 Disc
Components
Handlebar Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
Seatpost Aerodinamic Advanced Carbon Seat Post
Seat Selle Italia Novus Boost Evo Superflow

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry PULSE ELITE 05 SH12 (23)

    XS S M L XL
A
T/T 510 522 541 562 584
B
C/S 405 405 405 405 405
C
S/T 450 480 500 520 540
D
H/T 105 120 138 155 175
E
REACH 371 374 387 398 409
F
STACK 500 515 536 554 573
G
BB HEIGHT 285 285 285 285 285
H
FRONT ANGLE 71.5º 71.5º 72.5º 73º 73º
I
REAR ANGLE 74.5º 74º 74º 73.5º 73.5º
HANDLEBAR AND STEM INTEGRATED: XS S M L XL 90/400 - - - - 100/400 - - - - 110/420 - - - 120/440 - - - -
  FIT GUIDE X-SMALL
158 - 165
SMALL
165 - 172
MEDIUM
172 - 182
LARGE
182 - 188
X-LARGE
188 - 210

Related bicycles
