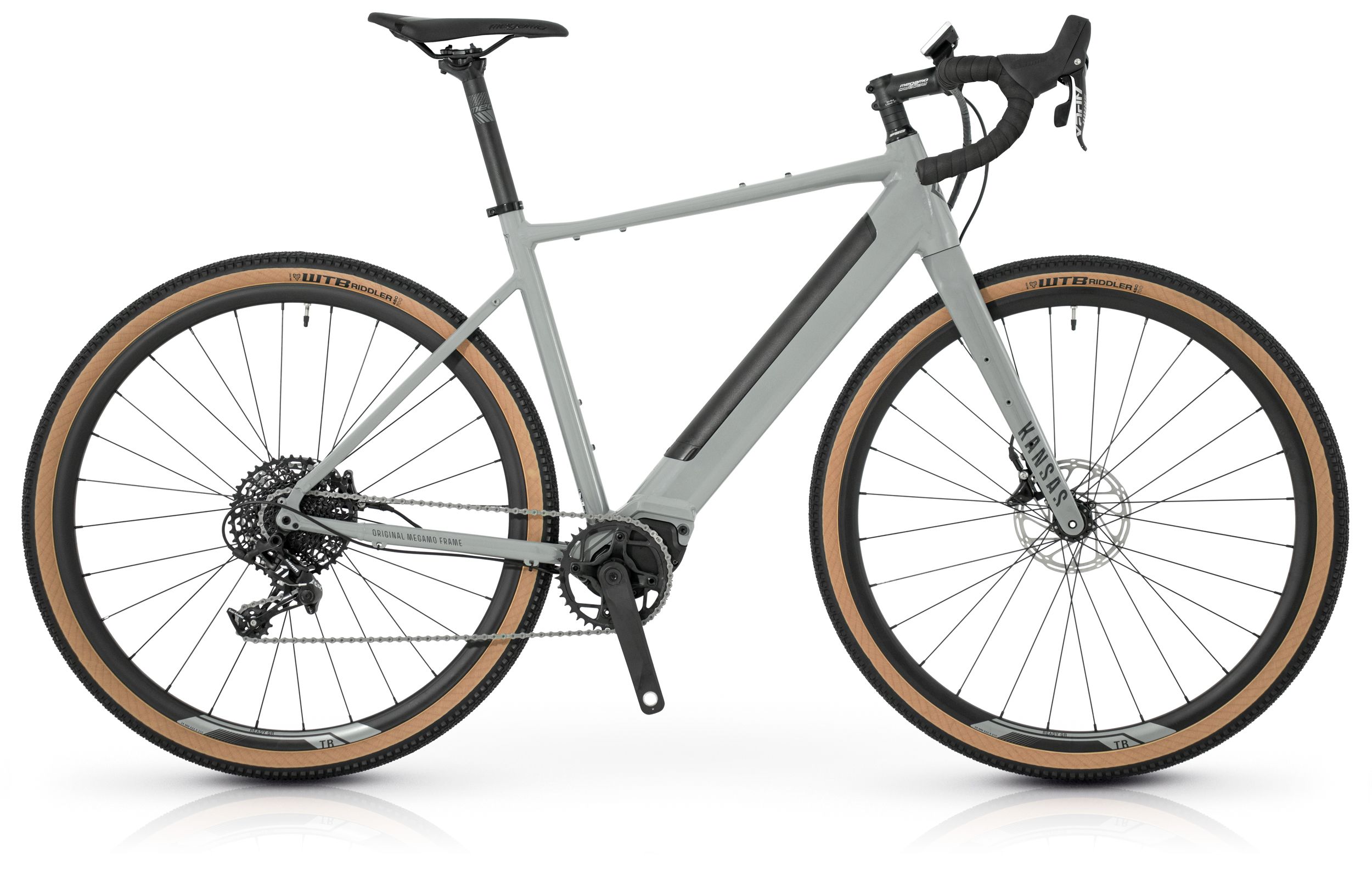

Meteor Grey (Shining)
Out of stock

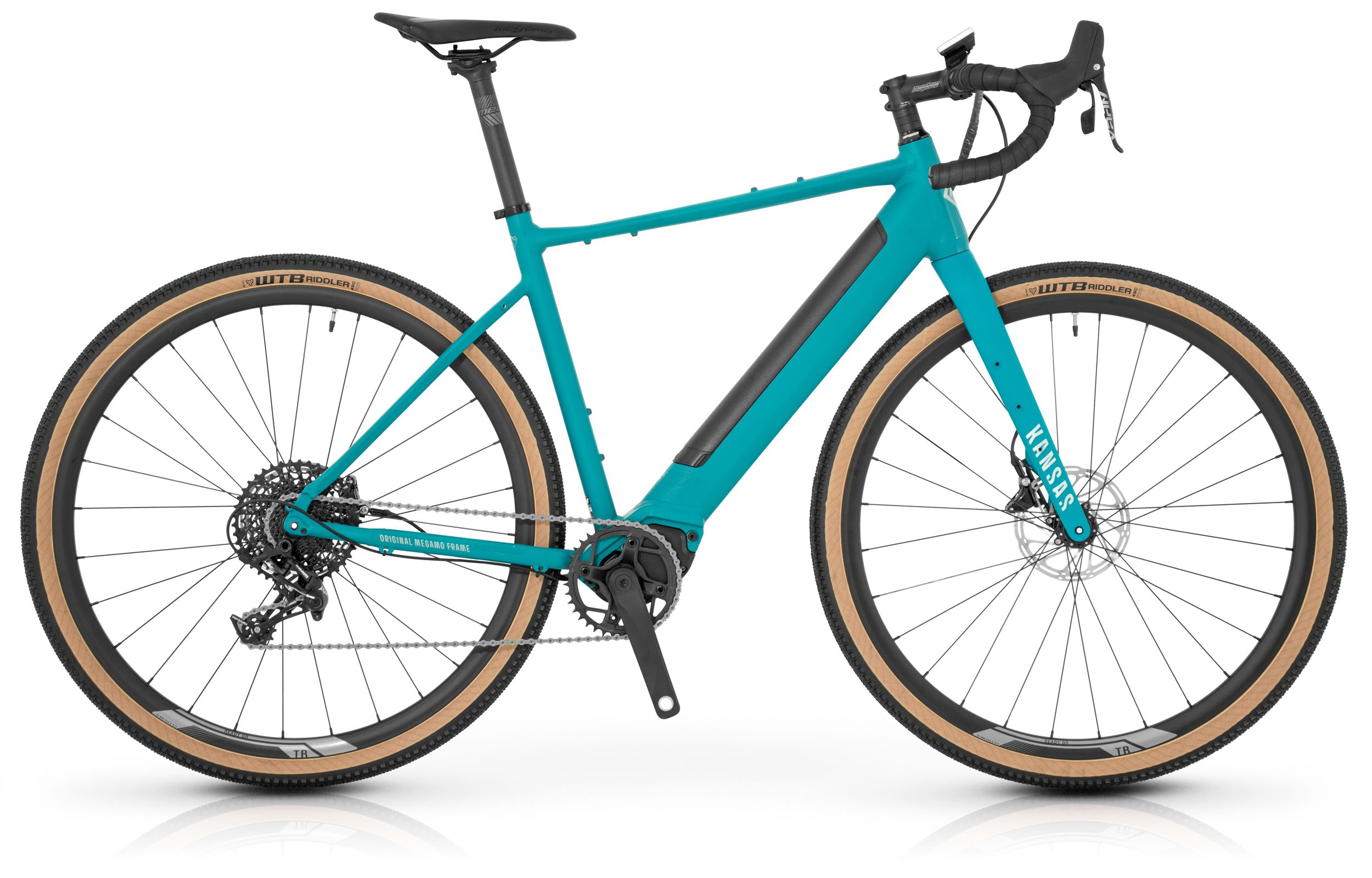

Kansas Blue
+5

2. Related Products

2.399 €

KANSAS (22)

KEY FEATURES
· Aluminium frame with fully integrated battery specific e-Gravel with central motor and internal wiring
· Carbon fork with flat mount
· SRAM Apex 1x11s drivetrain
· SRAM Apex brakes
· 200W and 65Nm central motor
· Integrated 36V and 504 Wh battery
SizeL
Price2.399 €
Buy Compare model
Comparator of models

Technical information

Frameset
Frame Aluminium e-Gravel frame, Central motor, Hydroformed Technology, Internal Cable Routing, Flat Mount Disc 12x142
Fork Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Headset FSA Tapered
Electronic components
Motor Megamo e-Gravel central motor 200W 65Nm
Battery integrated (Li-Ion) 36v - 14 Ah - 504 Wh
Display Megamo LCD Screen
Drivetrain
Rear Derailleur Sram Apex1 1x11s
Shifters Sram Apex1 1x11s
Crankset FSA 38T
Cassette Sram Apex1 1x11s 11-42t
Brakes
Brakes Sram Apex1 1x11s
Wheels
Tires WTB Riddler 700 x 45c Tan Sidewall
Wheels Megamo Gravel GR 700 - TLR
Components
Handlebar Megamo Specific Gravel HB FOV Compact
Stem Megamo FOV
Seatpost Megamo 30,9mm
Seat Sellie Italia Model X Superflow

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry KANSAS (22)

    S M L
A
T/T 540 560 580
B
C/S 455 455 455
C
S/T 470 520 570
D
H/T 160 160 210
E
REACH 372.84 386.16 384.77
F
STACK 581.05 584.99 636.6
G
FRONT ANGLE 71º 72º 73º
H
REAR ANGLE 74º 73.5º 73º
I
WHEEL BASE 1053.7 1058 1062.1
J
BB DROP 65 65 65
K
FRONT WHEEL BB 606.9 611.2 615.2
  FIT GUIDE SMALL
150 - 170
MEDIUM
165 - 180
LARGE
175 - 210
