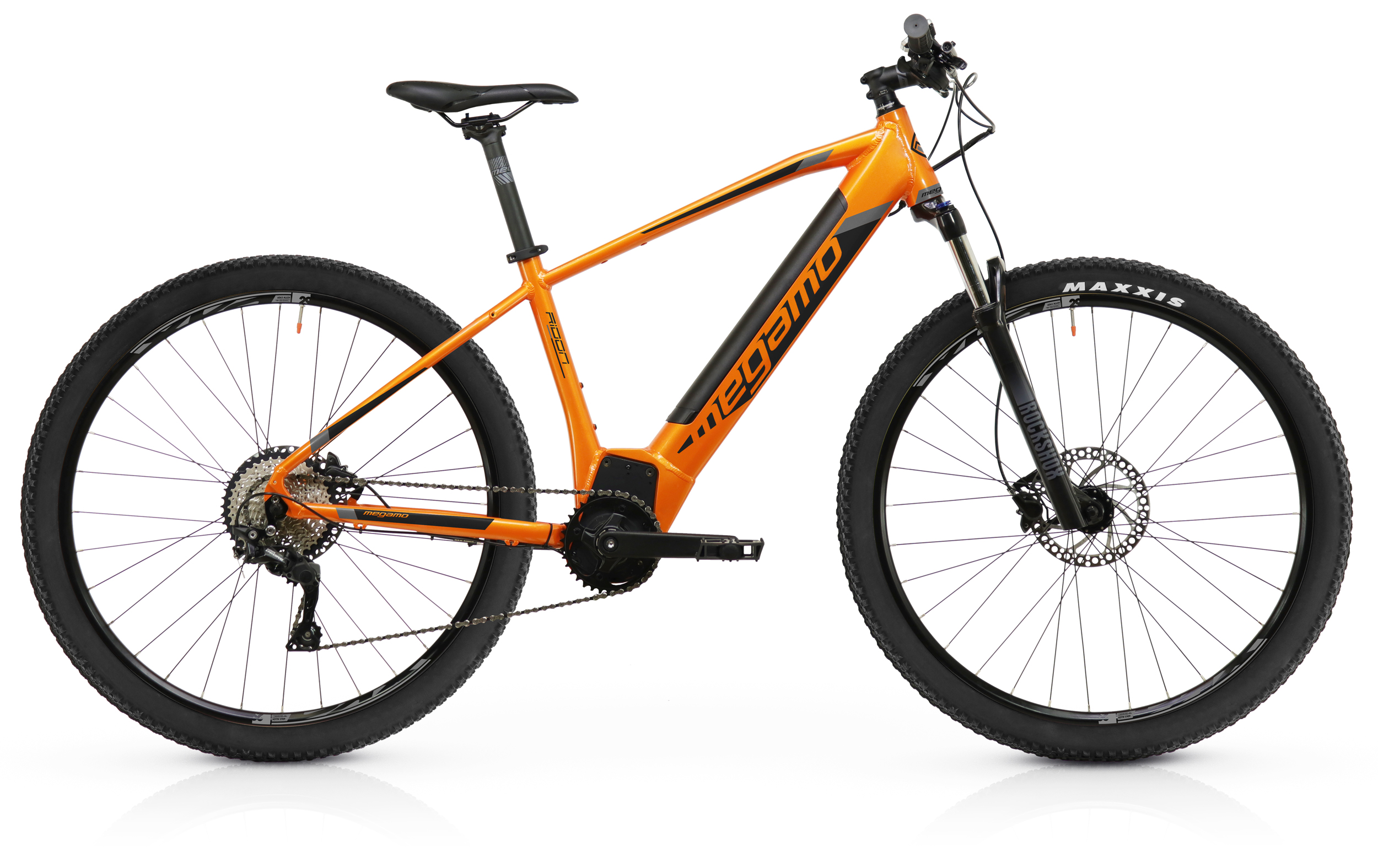

RIDON HT 504 07 (23)

KEY FEATURES
· 250W and 80Nm Megamo motor
· Integrated (easily removable) 504 Wh battery
· Frame with fully integrated battery, central motor
· Rock Shox Judy Coil fork
· Shimano Deore 10-speed transmission
· Shimano MT200 / Tektro M275 Hydraulic Disc Brake


Price0 €
Buy Compare model
Comparator of models

Technical information

Frameset
Frame Full Integratted Battery, central motor, tapered 1,5" headtube
Fork Rock Shox Judy Coil QR
Headset FSA tapered
Electronic components
Motor Megamo mid motor 250W 80Nm
Battery integrated (Li-Ion) 36v - 14 Ah - 504 Wh
Display Megamo LCD screen 5 levels
Drivetrain
Rear Derailleur Shimano Deore M5120 10s
Shifters Shimano Deore M4100 10s
Crankset FSA 36T 104c
Cassette Shimano Deore M4100 11-46T 10s
Brakes
Brakes Shimano MT200 hydraulic disc 180/180
Wheels
Tires 29x2,2
Hubs Formula
Wheels XC one doble wall disc
Components
Handlebar alloy butted 31, 8x720 mm, rise: 12 mm,back sweep: 6º
Stem 3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Seatpost Megamo 30,9mm
Seat Megamo

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry RIDON HT 504 07 (23)


  M L
SIZE 17,5 20
T/T 600 630
C/S 485 485
S/T 450 500
H/T 140 165
REACH 416 438
STACK 633 656
FRONT ANGLE 68,5 68,5
REAR ANGLE 73º 73º
