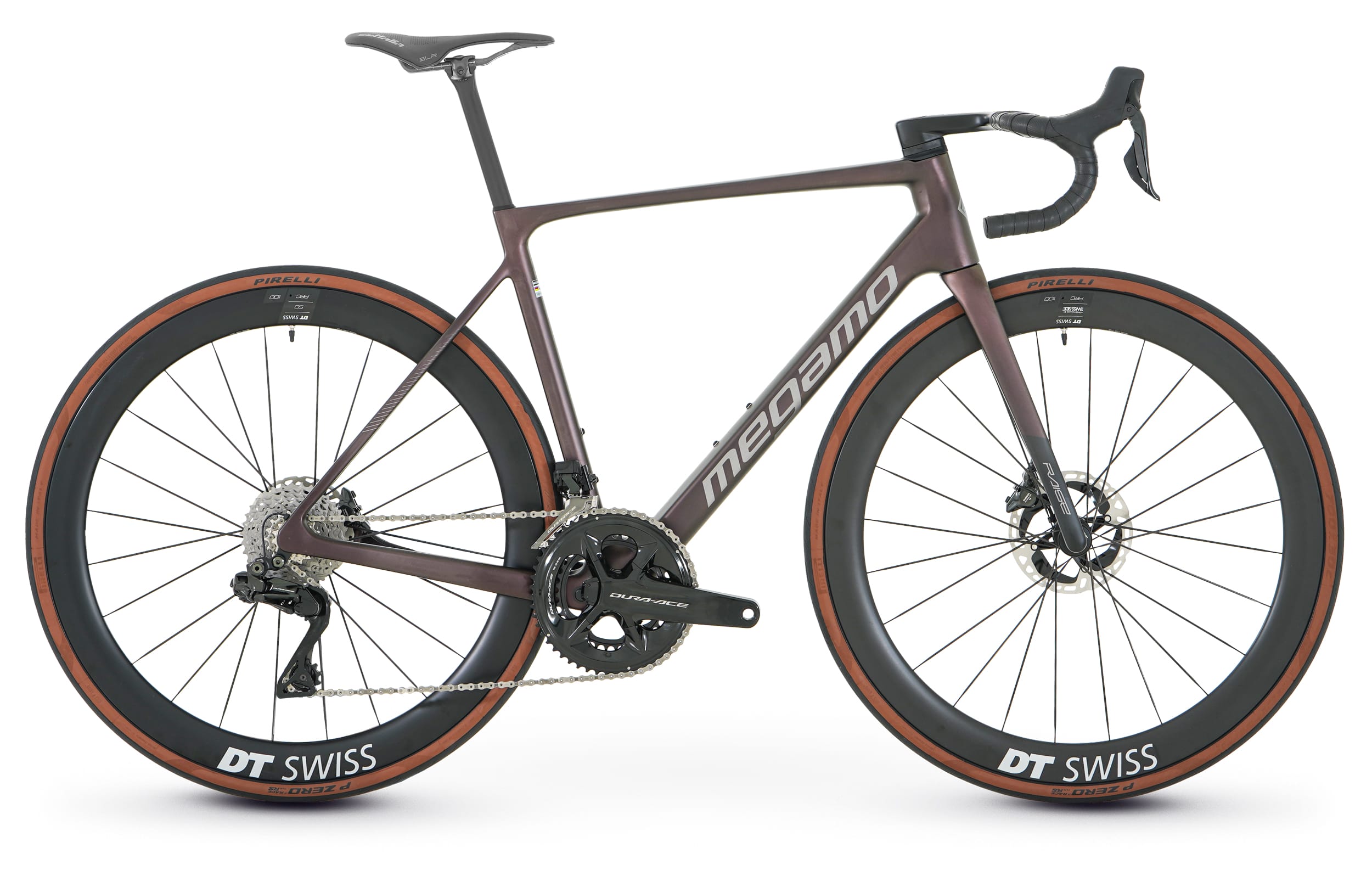

RAISE 01 2026

CARACTERÍSTICAS PRINCIPALES
· Cuadro Raise Carbon Advanced Composite Super Light Race UCI con cableado totalmente interno
· Transmisión Shimano Dura-Ace Di2 2x12 velocidades, Powermeter
· Ruedas DT Swiss ARC 1100 Dicuit 50mm Carbon
Precio0 €
Encuentra tu tienda Comparar bicicleta
Comparador de modelos

Información técnica

Conjunto del cuadro
Cuadro Carbon Advanced Composite Super Light Race Frame, Full Internal Cable Routing, Flat mount disc 12x142
Horquilla Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Juego de dirección Totally Internal Cable routing
Transmisión
Cambio Trasero Shimano Dura-Ace Di2 R9250, Shadow 12-Speed
Desviador Shimano Dura-Ace Di2 R9250, 2x12-Speed
Manetas cambio Shimano Dura-Ace Di2 R9270
Plato Shimano Dura-Ace R9200 Chainring 52-36T 2x12-Speed, Powermeter Crankset / XS size 165 mm / S size 170 mm / M, L size 172,5 mm / XL size 175 mm
Cassette Shimano Dura-Ace R9200, 11-34T
Frenos
Conjunto de frenos Shimano Dura-Ace Di2 R9270, Hydraulic disc RT-MT900 160 mm / 140 mm
Ruedas
Cubiertas Pirelli P Zero Race TLR Classic 622 x 30 Tan Sidewall
Bujes DT Swiss 180 Ratchet EXP 36, Front axle 12 x 100 mm, Rear axle 12 x 142 mm
Ruedas DT Swiss ARC 1100 DICUIT, 50mm Tubeless ready Carbon rim
Componentes
Manillar Carbon Full Integratted Internal Cable Routing / XS size 80 x 380 mm / S size 90 x 400mm / M size 100 x 400 mm / L size 110 x 420 / XL size 120 x 440 mm
Tija sillín Aerodinamic Advanced Carbon Seat Post / XS, S size 350 mm / M, L, XL size 400 mm
Sillín Selle Italia SLR Boost Superflow Carbon

*Megamo se reserva el derecho a modificar cualquier componente, por uno de igual valor en caso de ser necesario, sin previo aviso.

Geometría RAISE 01 (26)

    XS S M L XL
A
T/T 507 527 538  554 572
B
C/S 410 410 410 410 410
C
S/T 442 460 482 503 535
D
H/T 102 115 130 145 172
E
REACH 376 383 384 396 402
F
STACK 506 521 534 550 576
G
BB OFFSET 69 69 69 69 69
H
FRONT ANGLE 71,75° 72,5° 73° 73,5° 73,5°
I
REAR ANGLE 75.5º 74.5º 74º 74º 73.5º
J
WHEELBASE 970 975 980 990 1003

    80 x 370 90 x 390 100 x 390 110 x 410 120 x 430
A
Width hoods 370 390 390 410 430
B
Width drops 393 413 413 433 453
C
Stem Length 80 90 100 110 120
D / E
Reach / Drop 81 / 130 81 / 130 81 / 130 81 / 130 81 / 130
F
Stem Angle 10.5º 10.5º 10.5º 10.5º 10.5º
G
FLARE 3.3º 3.3º 3.3º 3.3º 3.3º
H
GPS HOLES 27 27 27 27 27
I
HOLES TO FRONT 21 21 21 21 21
  FIT GUIDE X-SMALL
< 165
SMALL
165 - 172
MEDIUM
170 - 180
LARGE
180 - 188
X-LARGE
188 <
