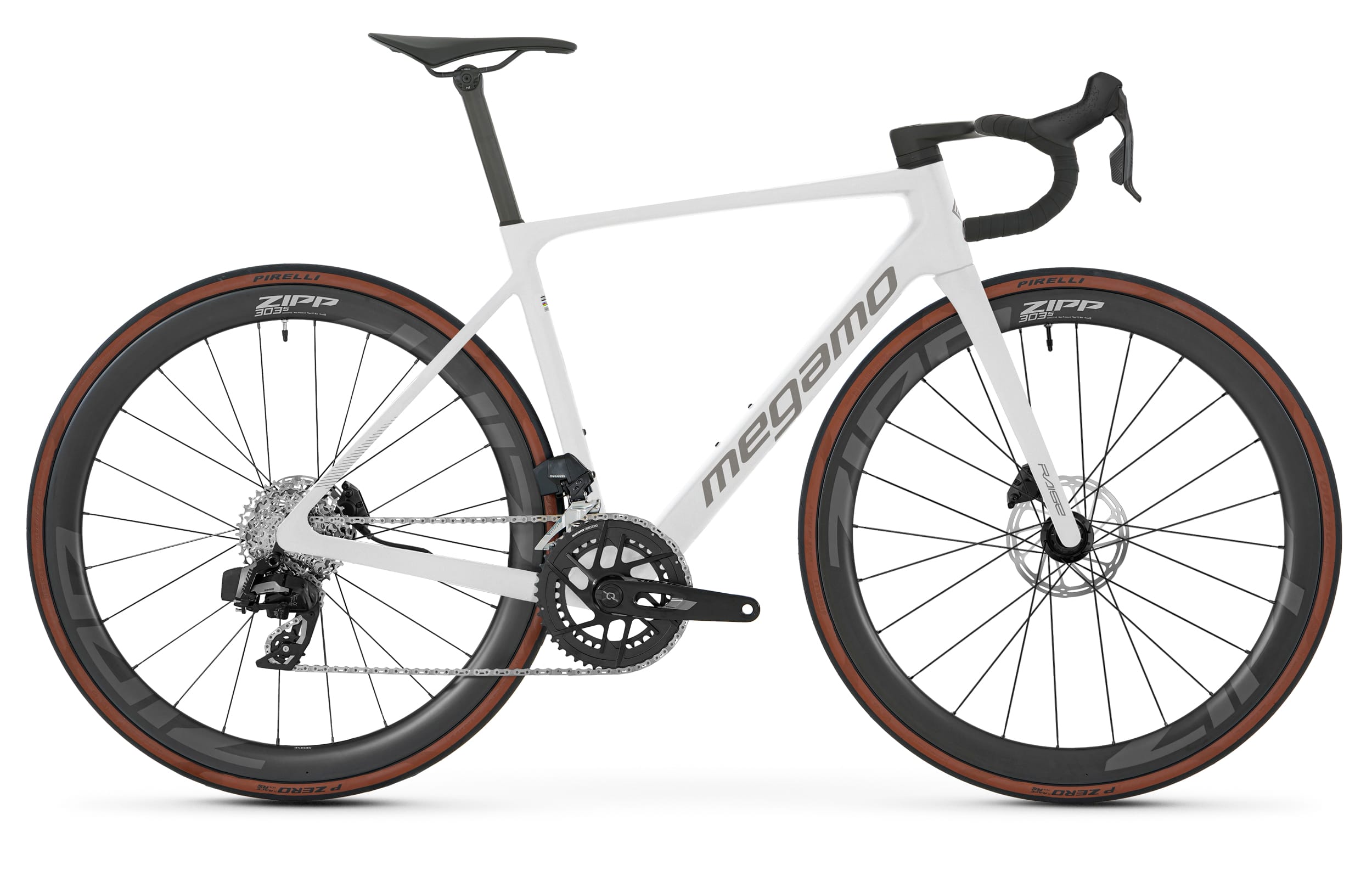

RAISE 07 2026

CARACTERÍSTICAS PRINCIPAIS
· Quadro Raise Carbon Advanced Composite Super Light UCI com passagem de cabos totalmente interna
· Transmissão Sram Rival AXS 2x12 velocidades, Powermeter
· Rodas Zipp 303 S 45mm Carbon
Preço0 €
Comparar modelo
Comparador de modelos

Informação técnica

Conjunto do quadro
Frame Carbon Advanced Composite Super Light Frame, Full Internal Cable Routing, Flat mount disc 12x142
Fork Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Headset Totally Internal Cable routing
Transmissão
Desviador traseiro Sram Rival AXS, 12-Speed
Derailleur Sram Rival AXS, 12-Speed
Leve del cambio Sram Rival AXS
Crankset Sram Rival Chainring 48-35T 2x12-Speed, Powermeter Crankset / XS size 160 mm / S size 165 mm / M, size 170 mm / L size 172,5 mm / XL size 175 mm
Cassette Sram Rival, 10-36T
Travões
Brakes Sram Rival AXS, Hydraulic disc Centerline 160 mm / 140 mm
Rodas
Tires Pirelli P Zero Race TLR Classic 622 x 30 Tan Sidewall
Hubs Zipp 176 DB bearings, Front axle 12 x 100 mm, Rear axle 12 x 142 mm
Wheels Zipp 303 S Tubeless Disc-brake, 45mm Tubeless ready Carbon rim
Componentes
Handlebar Carbon Full Integratted Internal Cable Routing / XS size 80 x 380 mm / S size 90 x 400mm / M size 100 x 400 mm / L size 110 x 420 / XL size 120 x 440 mm
Seatpost Aerodinamic Advanced Carbon Seat Post / XS, S size 350 mm / M, L, XL size 400 mm
Seat Fizik Vento Antares R5

*Megamo reserva-se o direito de modificar qualquer componente, por outro de igual valor, se necessário, sem aviso prévio.

Geometria RAISE 07 (26)

    XS S M L XL
A
T/T 507 527 538  554 572
B
C/S 410 410 410 410 410
C
S/T 442 460 482 503 535
D
H/T 102 115 130 145 172
E
REACH 376 383 384 396 402
F
STACK 506 521 534 550 576
G
BB OFFSET 69 69 69 69 69
H
FRONT ANGLE 71,75° 72,5° 73° 73,5° 73,5°
I
REAR ANGLE 75.5º 74.5º 74º 74º 73.5º
J
WHEELBASE 970 975 980 990 1003

    80 x 370 90 x 390 100 x 390 110 x 410 120 x 430
A
Width hoods 370 390 390 410 430
B
Width drops 393 413 413 433 453
C
Stem Length 80 90 100 110 120
D / E
Reach / Drop 81 / 130 81 / 130 81 / 130 81 / 130 81 / 130
F
Stem Angle 10.5º 10.5º 10.5º 10.5º 10.5º
G
FLARE 3.3º 3.3º 3.3º 3.3º 3.3º
H
GPS HOLES 27 27 27 27 27
I
HOLES TO FRONT 21 21 21 21 21
  FIT GUIDE X-SMALL
< 165
SMALL
165 - 172
MEDIUM
170 - 180
LARGE
180 - 188
X-LARGE
188 <
