1. Select model and size

29" - Garnet
29" - Black
29" - Beige

2. Related Products

3.199 €

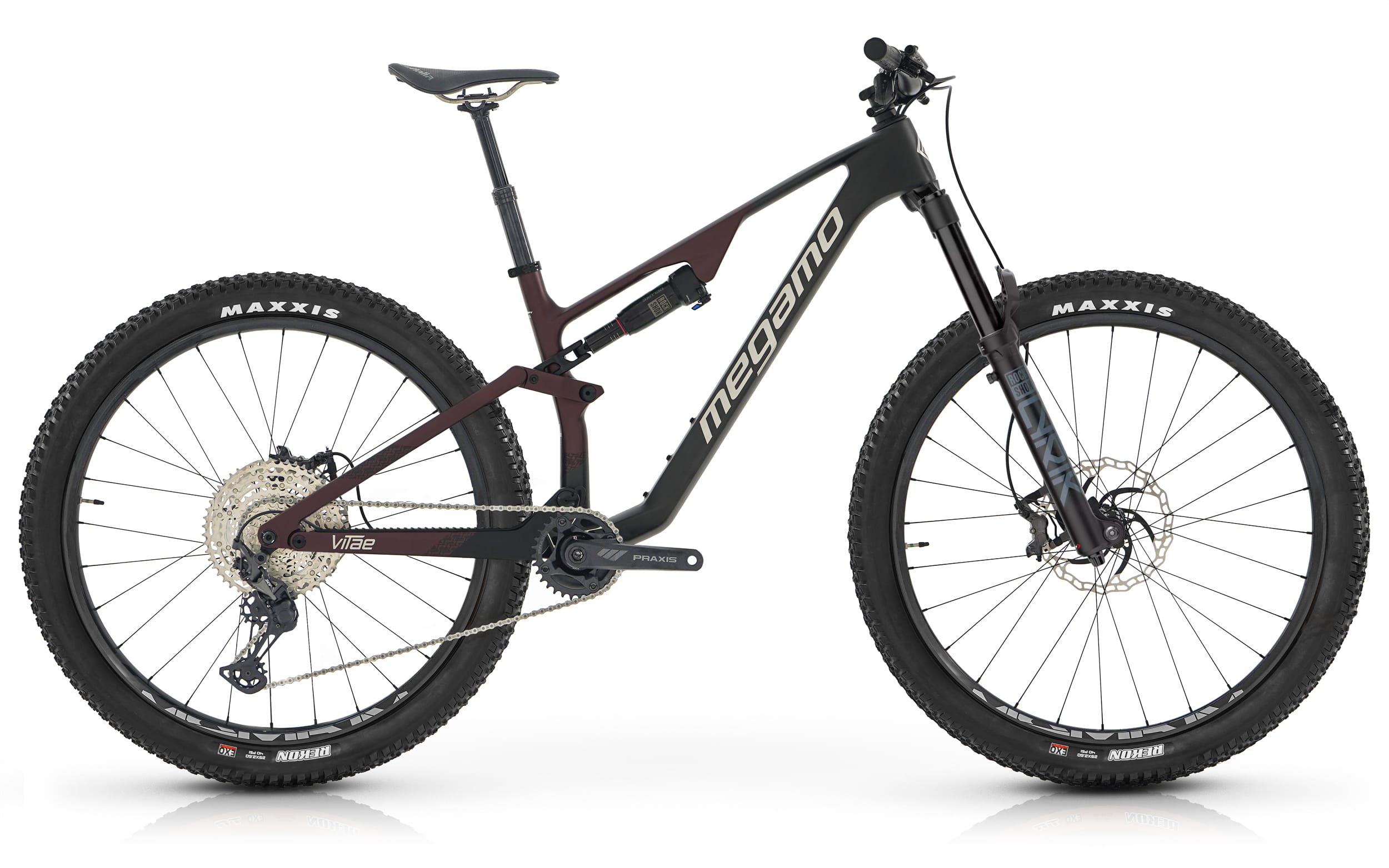

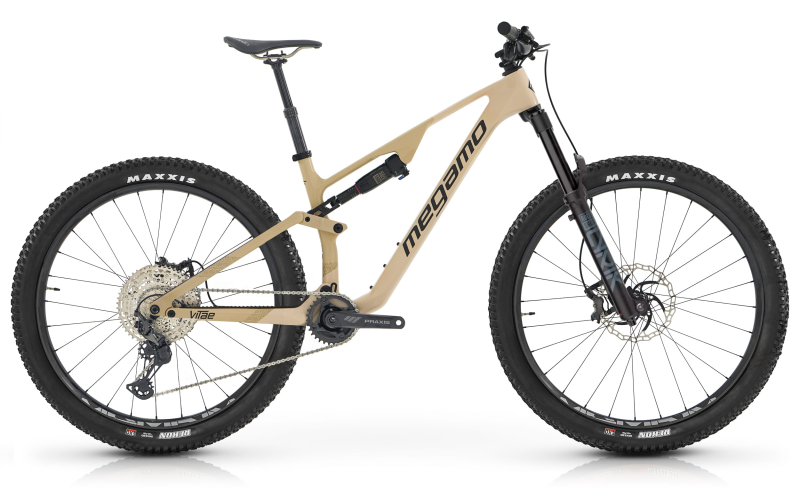

VITAE 20 2024

KEY FEATURES
· Vitae Full Carbon frame, Boost, 150mm wheel travel
· Rock Shox 35 Gold fork with 150mm travel
· Rock Shox Deluxe Select+ rear shock
· Shimano XT - Shimano SLX transmission, 12 speeds

· Shimano MT410 4-piston hydraulic disc brakes
· Ready AZY 30 F - HG wheels
· Megamo dropper seatpost with internal cable routing
Wheel29"SizeSML
Price3.199 €
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Vitae Full Carbon, Boost 12x148mm, Wheel travel: 150mm, Tire clearance 29x2.6
Fork Rock Shox 35 Gold RL, 150 mm
Shock Rock shox Deluxe Select +
Headset Integrated Full Internal Cable Routing
Brakes
Brakes Shimano MT410 hydraulic disc 4-Piston, 203mm
Wheels
Tires Maxxis Rekon 29 x 2.6
Wheels Ready AZY 30 F - HG
Components
Handlebar Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Stem 3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Seatpost Megamo telescopic seat post, remote adjustment

*Due to ongoing problems and delays in the supply chain, Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry VITAE 20 (24)

    S M L
A
T/T 574 603 638
B
C/S 440 440 440
C
S/T 390 420 455
D
H/T 95 100 115
E
REACH 427 455 487
F
STACK 612 617 631
G
BB OFFSET 33 33 33
H
FRONT ANGLE 65.5º 65.5º 65.5º
I
REAR ANGLE 76.5º 76.5º 76.5º
J
WHEEL BASE 11791209 1247
