2. Related Products

3.699 €

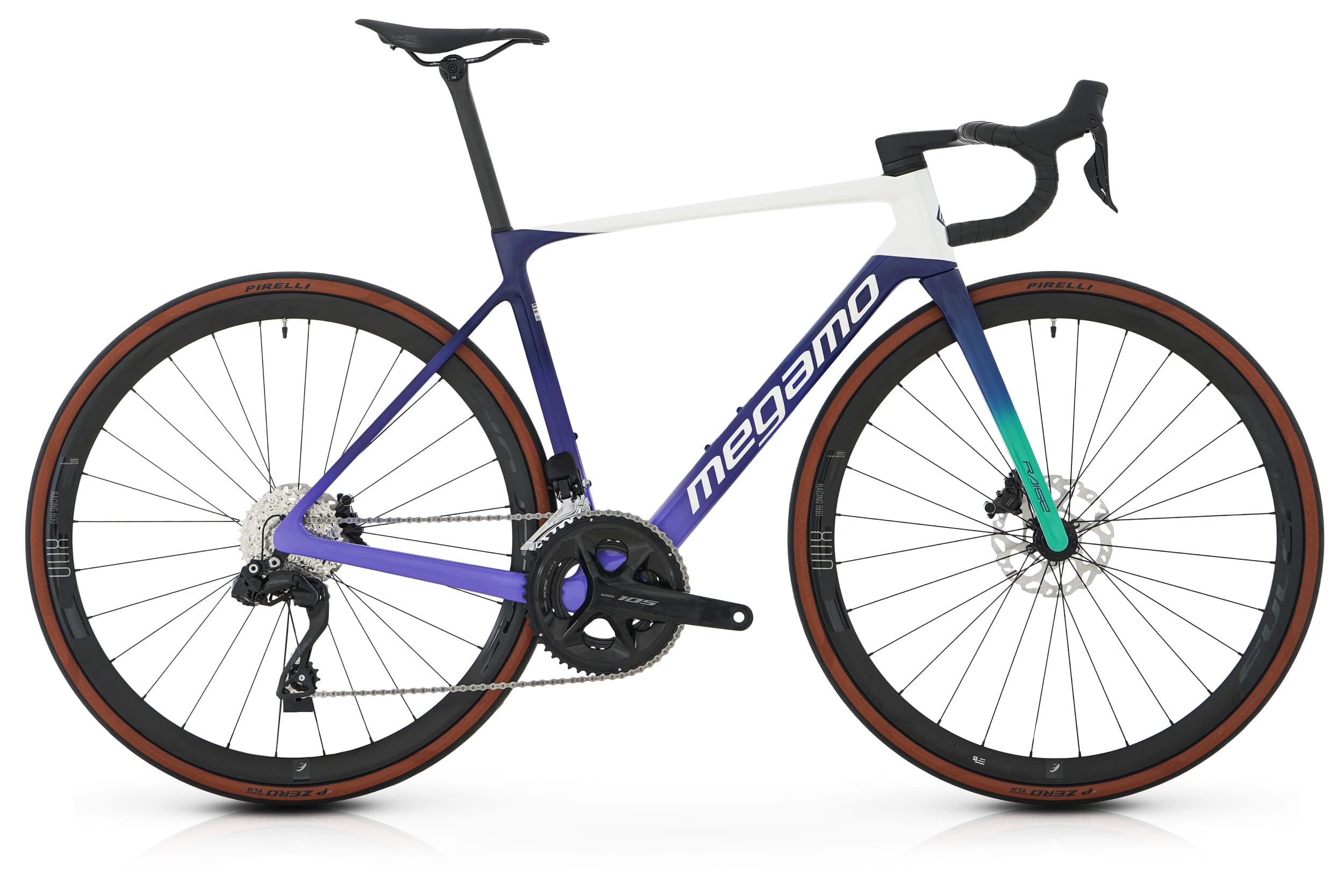

RAISE 15 2025

KEY FEATURES
· New Raise UCI ultra-light carbon frame with fully internal cable routing
· Shimano 105 Di2 12-speed drivetrain
· Fulcrum RD800 wheels
SizeXSSMLXL
Price3.699 €
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
Fork Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Headset Totally Internal Cable routing
Drivetrain
Rear Derailleur Shimano 105 Di2 R7150 12s
Shifters Shimano 105 Di2 R7150 12s
Crankset Shimano 105 Di2 R7100 12s 36-52T
Cassette Shimano 105 Di2 R7100 12s 11-34T
Brakes
Brakes Shimano 105 Di2 R7170 12s Hydraulic Disc
Wheels
Tires Pirelli P ZERO™ Race TLR Classic 30 - 622 SPEEDCore 127 tpi
Wheels Fulcrum Racing 800 DB
Components
Handlebar Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
Seatpost Aerodinamic Advanced Carbon Seat Post
Seat Selle Italia Shortfit Open-fit Start Up 144

* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry RAISE 15 (25)

    XS S M L XL
A
T/T 507 527 538  554 572
B
C/S 410 410 410 410 410
C
S/T 442 460 482 503 535
D
H/T 102 115 130 145 172
E
REACH 376 383 384 396 402
F
STACK 506 521 534 550 576
G
BB OFFSET 69 69 69 69 69
H
FRONT ANGLE 71,75° 72,5° 73° 73,5° 73,5°
I
REAR ANGLE 75.5º 74.5º 74º 74º 73.5º
J
WHEELBASE 970 975 980 990 1003

    80 x 380 90 x 400 100 x 400 110 x 420 120 x 440
A
Width hoods 370 390 390 410 430
B
Width drops 393 413 413 433 453
C
Stem Length 80 90 100 110 120
D / E
Reach / Drop 81 / 130 81 / 130 81 / 130 81 / 130 81 / 130
F
Stem Angle 10.5º 10.5º 10.5º 10.5º 10.5º
G
FLARE 3.3º 3.3º 3.3º 3.3º 3.3º
H
GPS HOLES 27 27 27 27 27
I
HOLES TO FRONT 21 21 21 21 21
