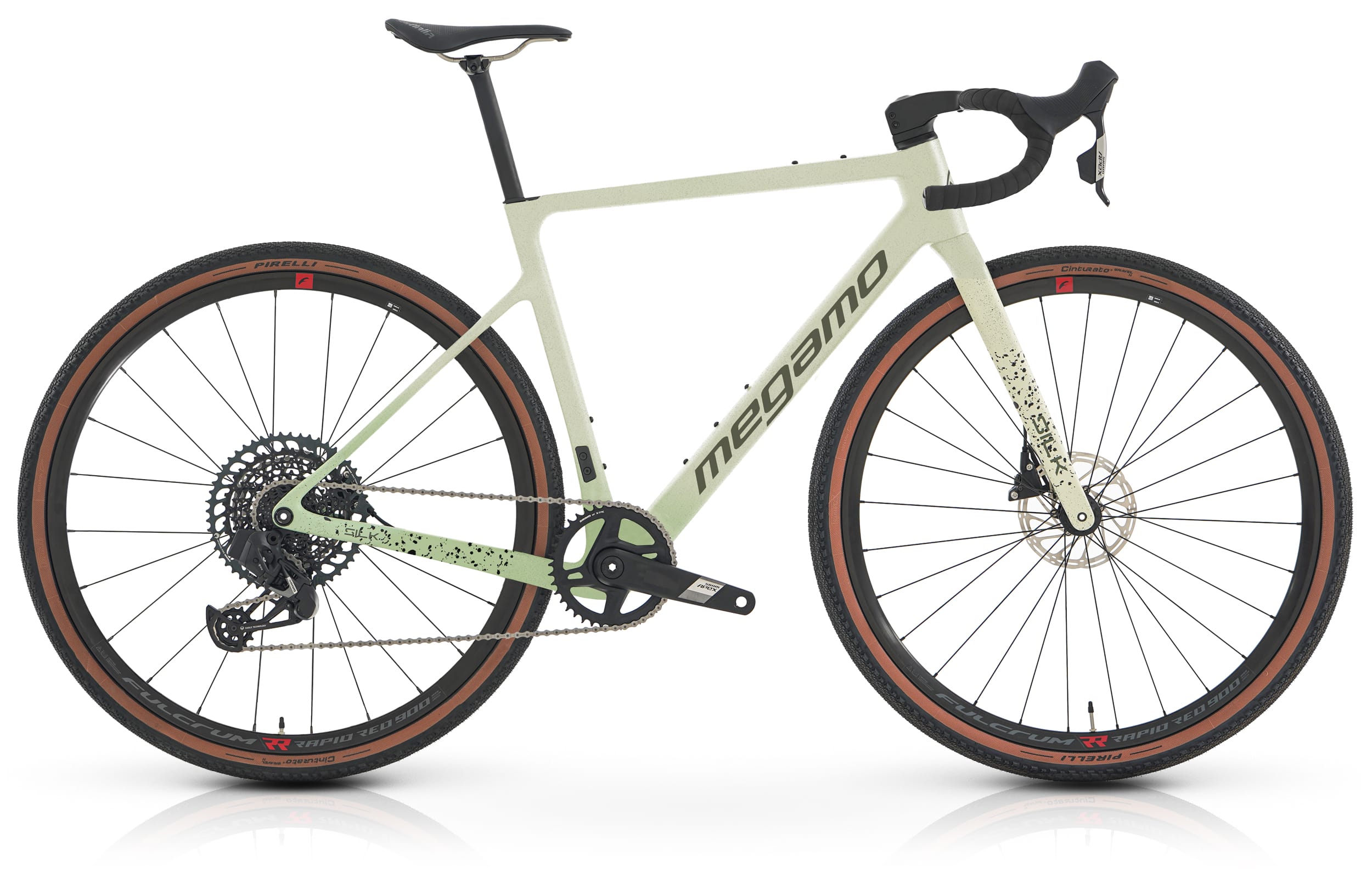

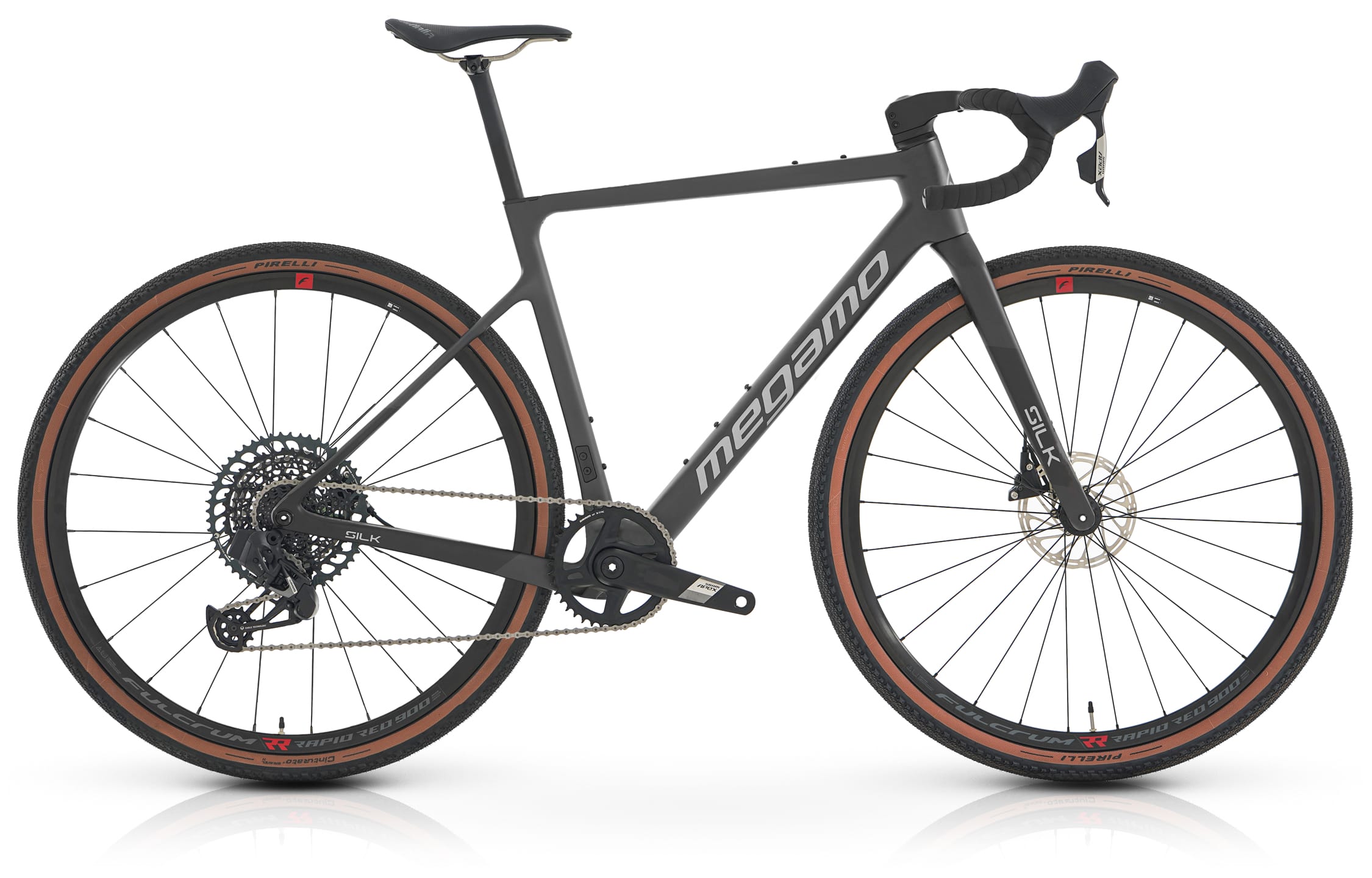

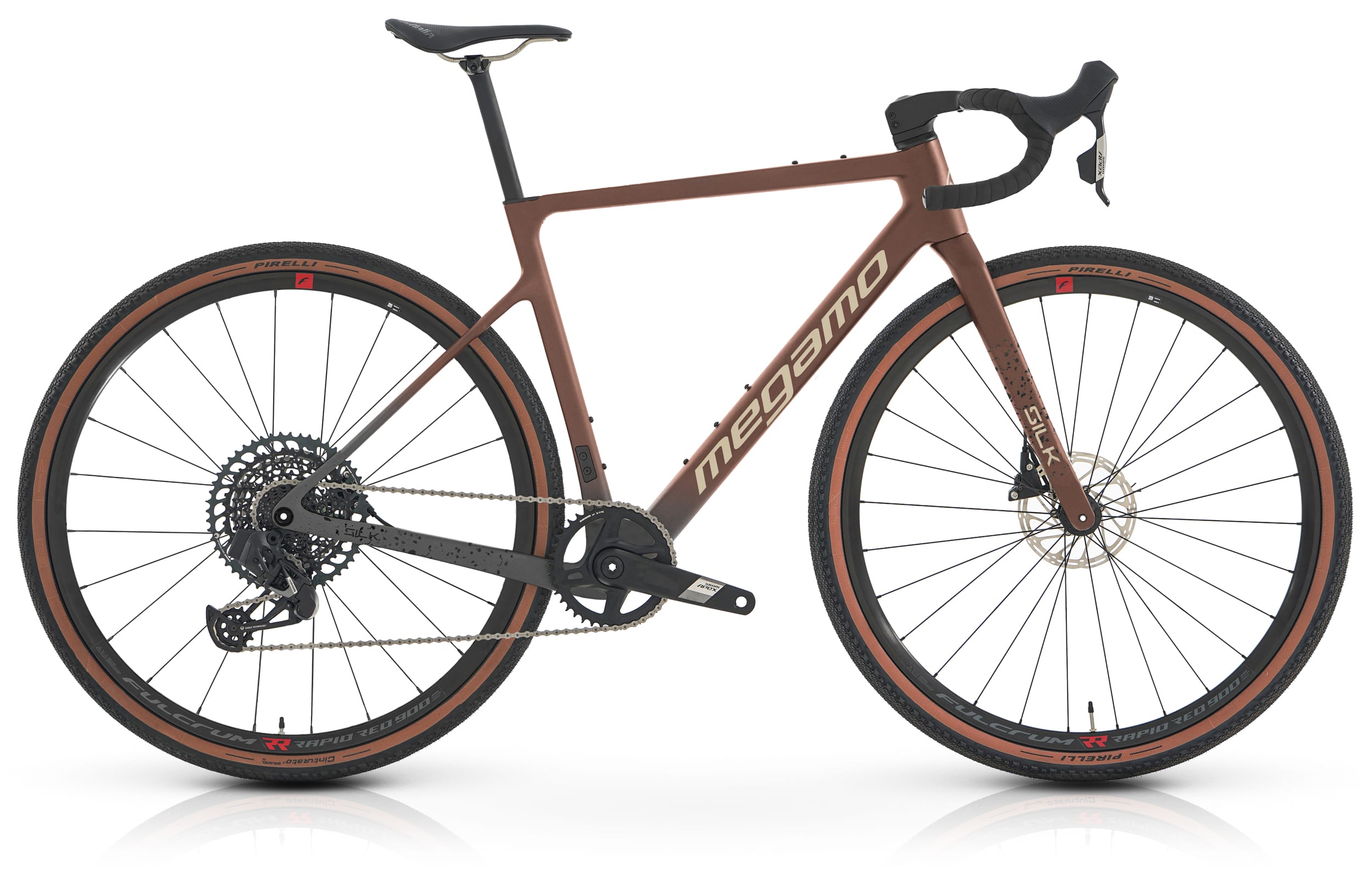

SILK AXS 05 2024

KEY FEATURES
· Carbon Gravel frame with fully internal wiring
· Specific carbon fork for Gravel riding
· Sram Apex AXS 1x12-speed transmission
· Fulcrum Rapid Red 300 wheels
· Compatible Tyres up to 45mm
Price0 €
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Carbon Advanced Composite Racing Gravel frame, Full Internal Cable Routing, BB86, Flat mount disc 12x142
Fork Carbon Advanced Composite Racing Gravel fork, Full Internal Cable Routing, Flat mount disc 12x100
Headset Totally Internal Cable routing
Drivetrain
Rear Derailleur Sram X1 Eagle AXS 12s
Shifters Sram Apex AXS 12s
Crankset Sram Apex 40T AL
Cassette Sram Eagle 10-52T
Brakes
Brakes Sram Apex Hydraulic disc
Wheels
Tires Pirelli 700x40c Tan Sidewall
Wheels Fulcrum Rapid Red 300
Components
Handlebar Carbon Full Integratted Internal Cable Routing Gravel Racing Handlebar: 70/380 (XS,S), 90/410 (M,L), 110/440 (XL)
Seatpost Gravel Advanced Carbon Seat Post

* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry SILK AXS 05 (24)

    XS S M L XL
A
T/T 515 535 555 580 595
B
C/S 425 425 425 425 425
C
S/T 450 470 500 520 545
D
H/T 90 110 130 155 180
E
REACH 372 382 395 408 416
F
STACK 516 535 557 581 605
G
BB OFFSET 71 71 71 71 71
H
FRONT ANGLE 70º 70º 71º 71º 71º
I
REAR ANGLE 74.5º 74º 74º 73.5º 73.5º
J
WHEEL BASE 10001017 1029 1050 1066

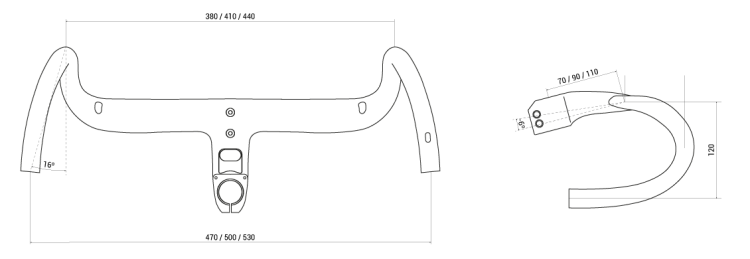

HANDLEBAR AND STEM INTEGRATED: XS S M L XL 70/380 - - - 90/410 - - - 110/440 - - - - -
  FIT GUIDE X-SMALL
158 - 165
SMALL
165 - 172
MEDIUM
172 - 182
LARGE
182 - 188
X-LARGE
188 - 210
