1. Select model and size

29" - CAPE EPIC (23)

2. Related Products

10.499 €

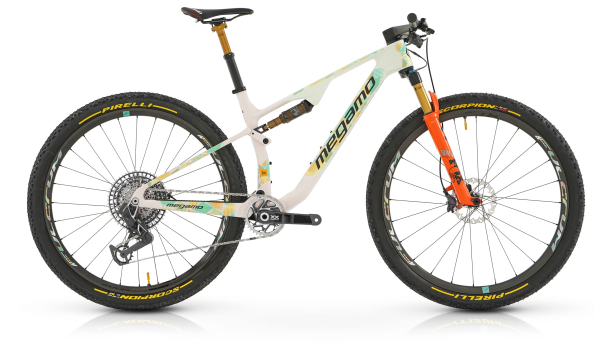

TRACK R120 AXS 00 CAPE EPIC EDITION (23)

KEY FEATURES
· New frame Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm SuperLight version
· Fork Fox 34 120mm Factory StepCast Kashima
· Rear Shock Fox DPS Factory Kashima, 120mm Travel 190x45, 3 positions Remote Lockout control
· Sram XX AXS 12-speed
· Wheels Fulcrum Red Zone Carbon 29 2WF
· Brakes Shimano XT 8100
· Dropper post Fox Transfer SL Kashima with internal cable routing
· Integrated Megamo carbon handlebar
Wheel29"SizeSMLXL
Price10.499 €
DON'T KNOW WHAT SIZE YOU NEED?
Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.
Calculate your size
CALCULATE YOUR SIZE
Tell us some basic information, we recommend the most appropriate size for your measurements.
I am a...
/
Fill the field
This result is indicative, if you want a more specific setting we recommend making a fitting with experts.
Previous Next Contact us
Contact your dealer if you need advice
Buy Compare model
Comparator of models

Technical information

Frameset
Frame New Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm SuperLight version
Fork Fox 34 Factory StepCast Kashima FIT4 120 mm Remote Lockout, 15x110 Boost
Shock Fox Float DPS Factory Kashima, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 120mm 190x45mm
Headset Integrated Full Internal Cable Routing
Drivetrain
Rear Derailleur Sram XX Eagle AXS T-Type 12s
Shifters Sram XX Eagle AXS 12s
Brakes
Brakes Shimano XT 8100
Wheels
Tires Pirelli Scorpion XC 29x2.4 Tubeless Ready
Wheels Fulcrum Red Zone Carbon 29 2WF
Components
Handlebar Full Integrated Carbon handlebar Megamo
Seatpost Fox Transfer SL Factory Kashima 31,6. Internal routing, remote.
Seat Selle Italia SLR Boost X-Cross Superflow

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

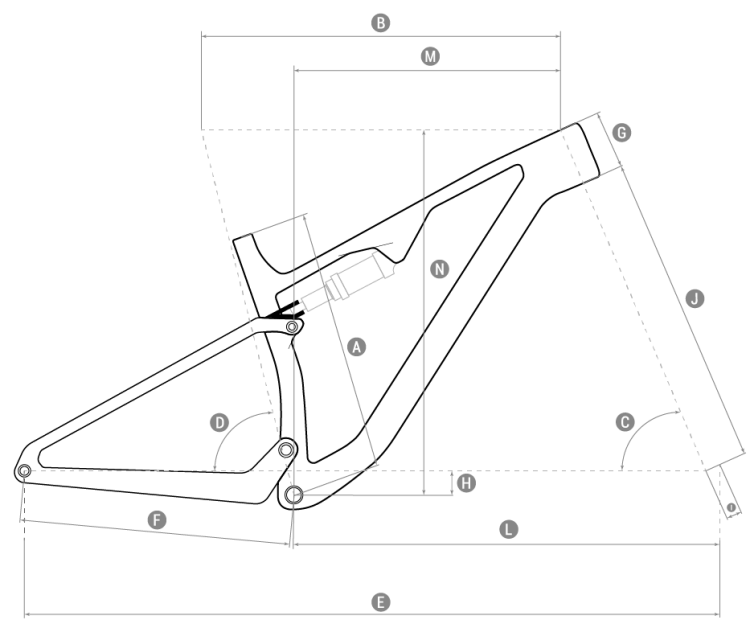

Geometry TRACK R120 AXS 00 CAPE EPIC EDITION (23)

    S M L XL
A
S/T 422 441 482 520
B
T/T 563 588 617 647
C
H/T angle 66.5º 66.5º 66.5º 66.5º
D
s/T angle 75.6º 75.6º 75.6º 75.6º
E
wheelbase 1132 1157 1188 1221
F
C/S 431 431 431 431
G
h/t 96 96 111 130
H
BB DROP 36 36 36 36
I
fork rake 44 44 44 44
J
FORK HEIGHT (0% sag) 510 510 510 510
K
FORK HEIGHT (20% sag) 490 490 490 490
L
FRONT WHEEL - BB 702 727 758 791
M
REACH 410 435 460 485
N
STACK 599 599 613 630
