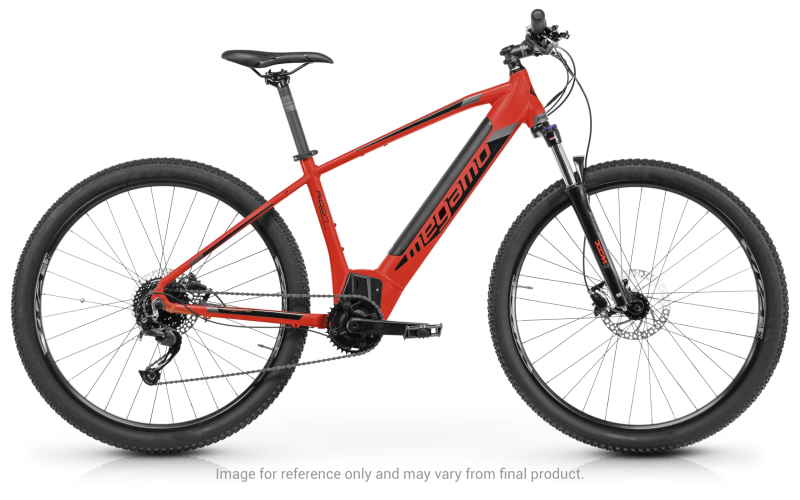

RIDON HT 504 10 2024

KEY FEATURES
· Frame with fully integrated battery, central motor
· SUNTOUR XCM HLO fork, 100mm travel
· Shimano Altus transmission
· Shimano MT200 / Tektro M275 Hydraulic Disc Brake
· 250W and 80Nm Megamo central motor
· Integrated (easy to put out) and 504 Wh battery


Price0 €
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Full Integratted Battery, central motor, tapered 1,5" headtube
Fork Suntour XCM HLO, travel 100mm, tapered headtube
Headset FSA tapered
Electronic components
Motor Megamo mid motor 250W 80Nm
Battery integrated (Li-Ion) 36v - 14 Ah - 504 Wh
Display Megamo LCD screen 5 levels
Drivetrain
Rear Derailleur Shimano Altus 9s
Shifters Shimano Altus 9s
Crankset FSA 36T 104c
Cassette Shimano Altus 9s 11-36T
Brakes
Brakes Shimano MT200 hydraulic disc 180/180
Wheels
Tires 29x2,2
Hubs Formula
Components
Handlebar Alloy butted 31,8x720 mm, rise: 12 mm, back sweep: 6º
Stem 3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Seatpost Megamo 30,9mm
Seat Megamo

*Due to ongoing problems and delays in the supply chain, Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry RIDON HT 504 10 (24)


  M L
SIZE 17,5 20
T/T 600 630
C/S 485 485
S/T 450 500
H/T 140 165
REACH 416 438
STACK 633 656
FRONT ANGLE 68,5 68,5
REAR ANGLE 73º 73º
