1. Select model and size

29" - Red

2. Related Products

3.858 €

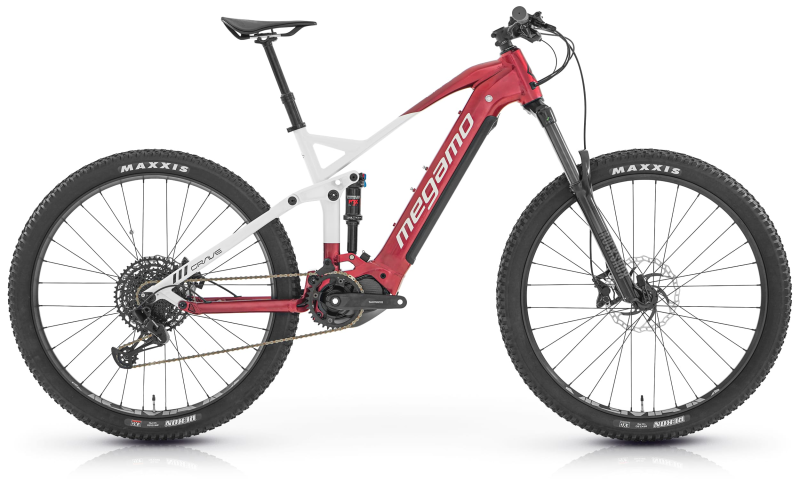

CRAVE AL 10 EP801 LTD 2022

KEY FEATURES
· Shimano EP801 engine / 85 Nm
· 630 Wh built-in LI-ION battery
· Frame with fully integrated battery and central motor
· Rock Shox 35 Silver fork with 160 mm travel
· Fox Float DPS P-S rear shock
· Sram SX 12-speed transmission
· Shimano MT420 4 Piston hydraulic disc brakes
Wheel29"SizeSML
Price3.858 €
DON´T KNOW WHAT SIZE YOU NEED?
Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.
Calculate your size
CALCULATE YOUR SIZE
Tell us some basic information, we recommend the most appropriate size for your measurements.
I am a...
/
Fill the field
This result is indicative, if you want a more specific setting we recommend making a fitting with experts.
Previous Next Contact us
Contact your dealer if you need advice
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Full Integratted Battery, Alloy Triple Butted, 12x148 Boost, Horst Link 4, Wheel travel: 150 mm, Tire clearance 29 x 2.6
Fork Rock Shox 35 Silver R 29" Boost 15x110mm 160mm E-MTB Tapered Steerer
Shock FOX Float DPS, Performance Series, 3pos, Trunnion, Evol LV, 205x65
Headset FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Electronic components
Motor Shimano EP801 / 85 Nm
Battery Integrated LI-ION Battery, 630 Wh
Drivetrain
Rear Derailleur Sram SX Eagle 12s
Shifters Sram SX Eagle 12s
Crankset Sram Chainring 36T
Cassette Sram SX Eagle 12s 11-50t
Brakes
Brakes Shimano MT420 hydraulic disc 4-Piston, 203mm
Wheels
Tires Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection / Pirelli Scorpion Eduro S HardWALL
Wheels 29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready
Components
Stem 3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Seatpost Megamo Ø30,9mm Dropper post, remote adjustment
Seat Selle Italia Model X

*Due to ongoing problems and delays in the supply chain, Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry CRAVE AL 10 EP801 LTD (22)


  S M L
SIZE 16 18 20
T/T 600 620 644
C/S 465 465 465
S/T 406 457 508
H/T 135 140 145
REACH 431 450 474
STACK 630 634 639
BB HEIGHT 370 370 370
FRONT ANGLE 65,3º 65,3º 65,3º
REAR ANGLE 75º 75º 75º
L/T 205x65 TR 205x65 TR 205x65 TR
REAR TRAVEL 150 150 150
WB 1232 1253 1279
