1. Select model and size

29" - Magma Red
Out of stock
Out of stock
29" - Pagoda White
Out of stock
Out of stock
29" - Black
Out of stock
Out of stock

2. Related Products

4.632 €

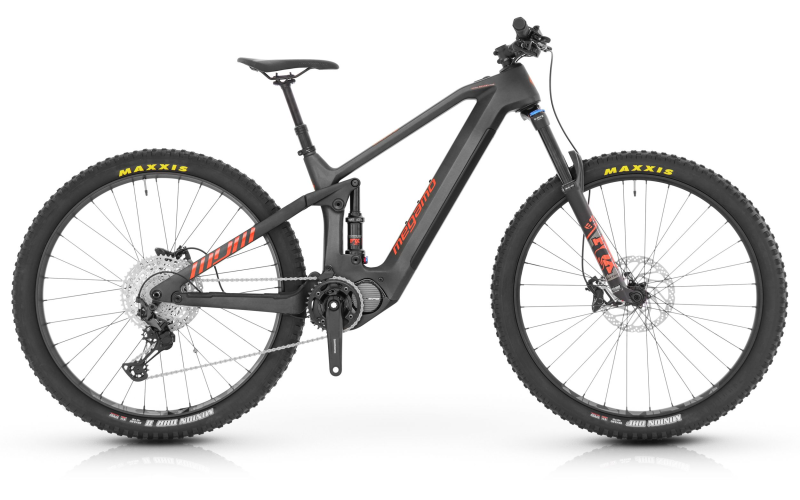

CRAVE CRB 05 2022

KEY FEATURES
· Shimano EP8 motor / 85 Nm
· Shimano 630 Wh integratted battery
· Carbon frame
· FOX 34 Ryhthm fork 150mm travel
· FOX DPS P-S Shock
· Shimano Deore 12s transmission
· Shimano MT520 4-piston hydraulic disc 203mm brakes
Wheel29"SizeML
Price4.632 €
DON´T KNOW WHAT SIZE YOU NEED?
Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.
Calculate your size
CALCULATE YOUR SIZE
Tell us some basic information, we recommend the most appropriate size for your measurements.
I am a...
/
Fill the field
This result is indicative, if you want a more specific setting we recommend making a fitting with experts.
Previous Next Contact us
Contact your dealer if you need advice
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Crave Full Carbon FSC Technology Carbon Swingarm, EP8 Specific Boost 12x148, Wheel travel: 160 mm, Tire clearance 29 x 2.6
Fork FOX 34 Rhythm e-Bike, Float 29, 150mm, grip, sweep-adj, 15QRx110 Boost, 44mm rake
Shock FOX Float DPS, Performance Series, 3pos, Trunnion, Evol LV, 205x65
Headset Integrated Full Internal Cable Routing
Electronic components
Motor Shimano EP8 250W
Battery Shimano Integrated LI-ION Battery, 630 Wh
Drivetrain
Rear Derailleur Shimano Deore 12s
Shifters Shimano Deore 12s
Crankset Shimano 36t
Cassette Shimano Deore 12s 10-51t
Brakes
Brakes Shimano MT520 hydraulic disc 4-Piston, 203mm
Wheels
Tires Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection / Pirelli Scorpion Eduro S HardWALL
Wheels 29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready
Components
Handlebar Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Stem 3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Seatpost Megamo 31,6mm telescopic seat post, remote adjustment
Seat Selle Italia Model X

*Due to ongoing problems and delays in the supply chain, Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry CRAVE CRB 05 (22)

    S M L
A
 T/T 588 615 650
B
 C/S 455 455 455
C
 S/T 400 420 480
D
 H/T 100 110 135
E
 REACH 435 459 489
F
 STACK 615 625 647
G
 FRONT ANGLE 65º 65º 65º
I
 REAR ANGLE 76º 76º 76º
G
 L/T 205x60 TR 205x60 TR 205x60 TR
G
 WB 1215 1244 1284
FIT GUIDE
SMALL
160 - 175
MEDIUM
175 - 185
LARGE
185 - 200
