1. Select model and size

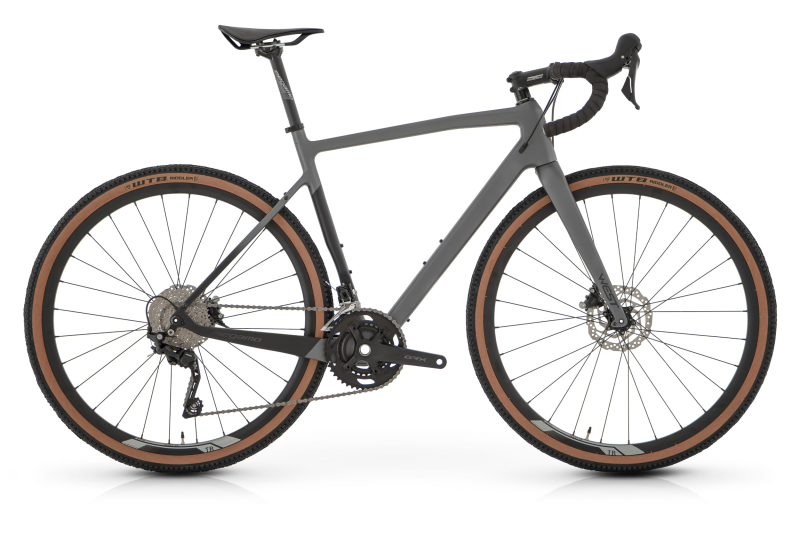

Black
Sold out
Sold out

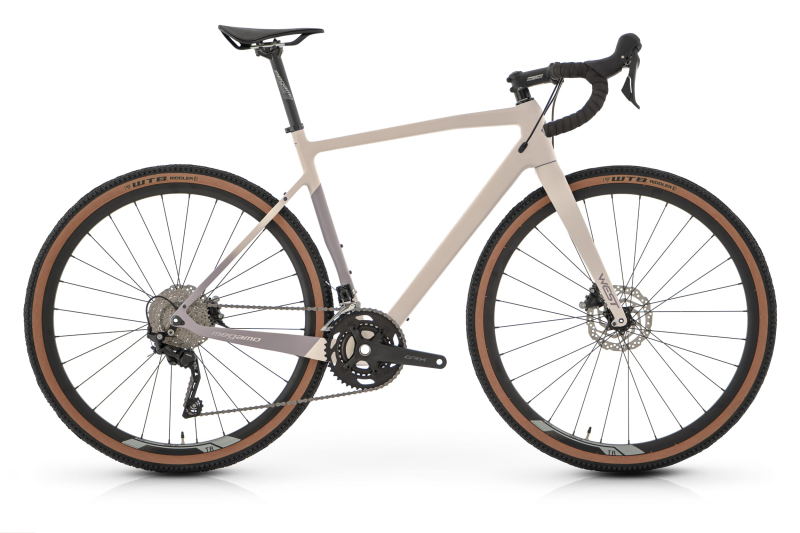

Sand
Sold out
Bone White - (Matt)
Sold out

2. Related Products

1.947 €

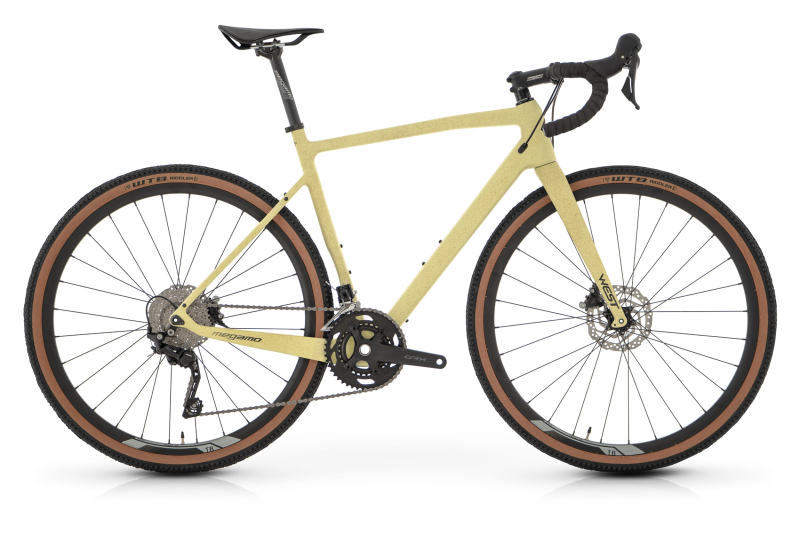

WEST 15 2023

KEY FEATURES
· Specific frame for carbon gravel
· Gravel specific carbon fork
· Shimano GRX 2x10 speed transmission
· Megamo Gravel GR 700 - TLR wheels
SizeXSS
Price1.947 €
DON??´T KNOW WHAT SIZE YOU NEED?
Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.
Calculate your size
CALCULATE YOUR SIZE
Tell us some basic information, we recommend the most appropriate size for your measurements.
I am a...
/
Fill the field
This result is indicative, if you want a more specific setting we recommend making a fitting with experts.
Previous Next Contact us
Contact your dealer if you need advice
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Carbon Gravel Advanced Composite Frame, Full Internal Cable Routing, Flat Mount Disc 12x142
Fork Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Headset FSA 1-1/8 1-1/2 * 1.5 Tapered
Drivetrain
Rear Derailleur Shimano RX-400 10s
Derailleur Shimano RX-400 2x10s
Shifters Shimano RX-400 Flat mount hydraulic disc
Crankset Shimano FC RX-600 46-30t
Cassette Shimano HG50 11-36t 10s
Brakes
Brakes Shimano RX-400 Flat mount hydraulic disc
Wheels
Tires WTB Riddler 700 x 45c Tan Sidewall
Wheels Megamo Gravel GR 700 - TLR
Components
Handlebar Megamo Specific Gravel HB FOV Compact
Stem Megamo FOV
Seatpost Megamo 27,2mm
Seat Selle Italia Model X

* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry WEST 15 (23)

    XS S M L XL
A
T/T 525 535 545 560 575
B
C/S 435 435 435 435 435
C
S/T 490 520 540 560 580
D
H/T 120 140 150 170 190
E
REACH 375 375 377 380 384
F
STACK 538 556 568 589 606
G
BB OFFSET 67  67 67 67 67
H
FRONT ANGLE 70.5º 71º 71.5º 72º 72º
I
REAR ANGLE 74.5º 74º 73.5º 73º 72.5º
J
WHEEL BASE 1026  1027  1028  1032  1041
K
FRONT WHEEL BB  600 601 602 606 615
  FIT GUIDE X-SMALL
150 - 160
SMALL
160 - 170
MEDIUM
170 - 180
LARGE
180 - 190
X-LARGE
190 - 210
