1. Select model and size

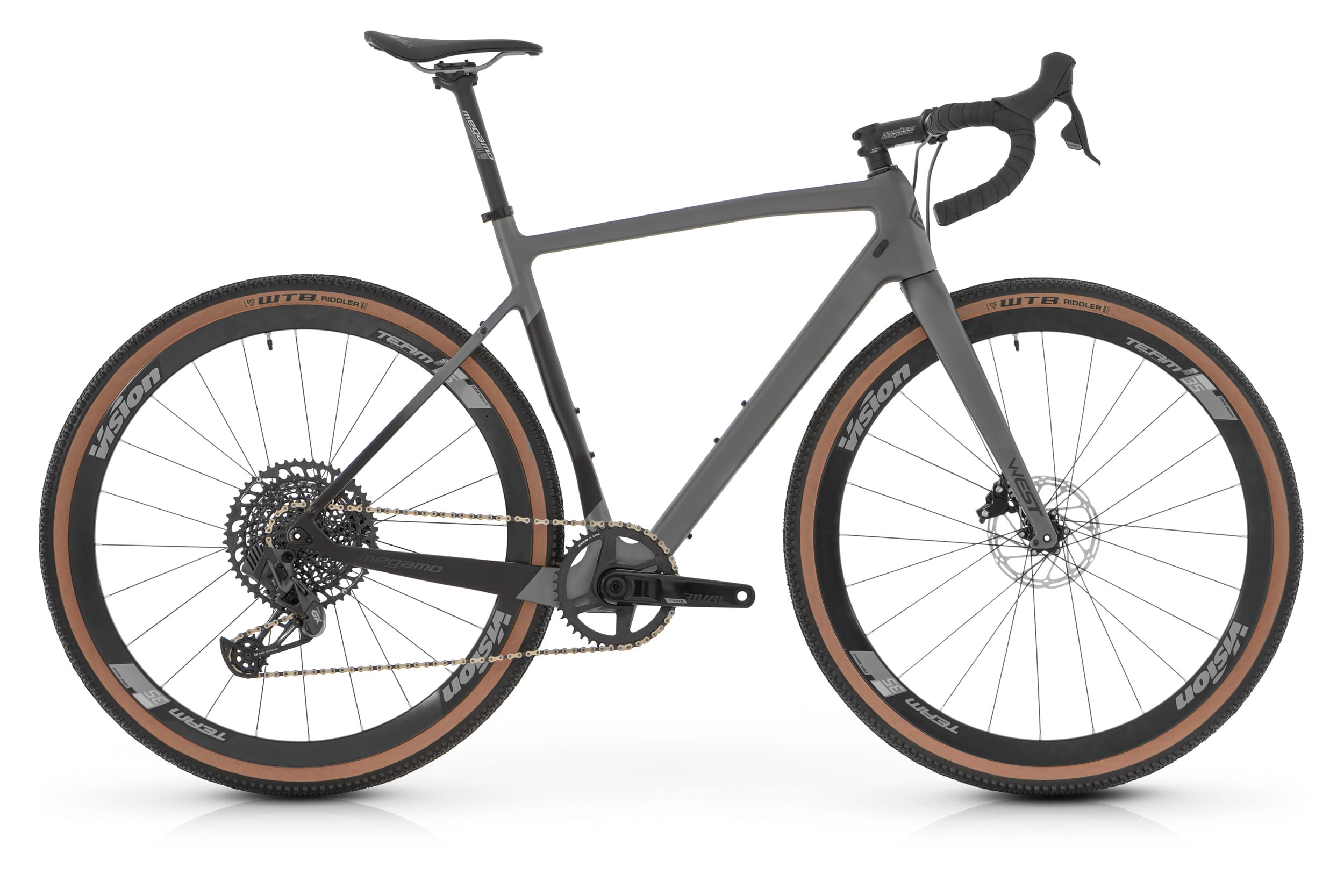

Black
Contact with sales department--
Contact with sales department--
Contact with sales department--
Contact with sales department--
Contact with sales department--
Bone White - (Matt)
Contact with sales department--
Contact with sales department--
Contact with sales department--
Contact with sales department--
Contact with sales department--

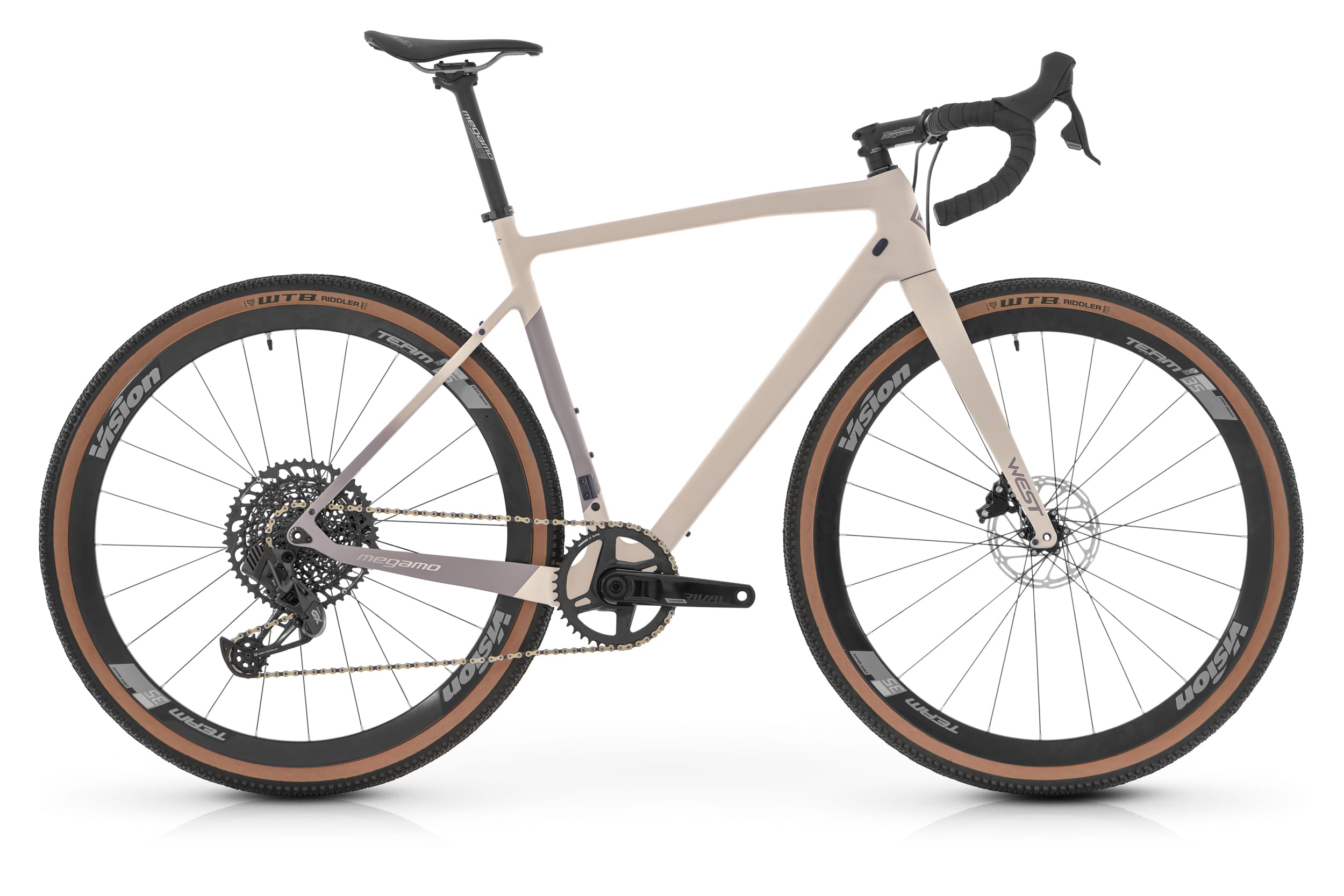

Sand
Contact with sales department--
Contact with sales department--
Contact with sales department--
Contact with sales department--
Contact with sales department--

2. Related Products

3.199 €

WEST AXS 05 (23)

KEY FEATURES
· Specific frame for carbon gravel
· Gravel specific carbon fork
· Sram Rival AXS 12s 42t - Sram GX AXS Eagle 12s transmission
· Vision Team 35 Disc wheels
SizeXSSMLXL
DON'T KNOW WHAT SIZE YOU NEED?
Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.
Calculate your size
CALCULATE YOUR SIZE
Tell us some basic information, we recommend the most appropriate size for your measurements.
I am a...
/
Fill the field
This result is indicative, if you want a more specific setting we recommend making a fitting with experts.
Previous Next Contact us
Contact your dealer if you need advice
Buy Compare model
Comparator of models

Technical information

Frameset
Frame Carbon Gravel Advanced Composite Frame, Full Internal Cable Routing, Flat Mount Disc 12x142
Fork Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Headset FSA 1-1/8 1-1/2 * 1.5 Tapered
Drivetrain
Rear Derailleur Sram GX AXS Eagle 12s
Shifters Sram Rival AXS 12s
Crankset Sram Rival AXS 12s 42t
Cassette Sram GX Eagle 12s 10-52t
Brakes
Brakes Sram Rival AXS 12s
Wheels
Tires WTB Riddler 700 x 45c Tan Sidewall
Hubs Vision Team 35 Disc CL 12x100 12x142
Wheels Vision Team 35 Disc CL TLR
Components
Handlebar Megamo Specific Gravel HB FOV Compact
Stem Megamo FOV
Seatpost Megamo 27,2mm
Seat Selle Italia Shortfit Open-fit Start Up 144

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry WEST AXS 05 (23)

    XS S M L XL
A
T/T 525 535 545 560 575
B
C/S 435 435 435 435 435
C
S/T 490 520 540 560 580
D
H/T 120 140 150 170 190
E
REACH 375 375 377 380 384
F
STACK 538 556 568 589 606
G
BB HEIGHT 67  67 67 67 67
H
FRONT ANGLE 70.5º 71º 71.5º 72º 72º
I
REAR ANGLE 74.5º 74º 73.5º 73º 72.5º
J
WHEEL BASE 1026  1027  1028  1032  1041
K
FRONT WHEEL BB  600 601 602 606 615
  FIT GUIDE X-SMALL
150 - 170
SMALL
165 - 175
MEDIUM
170 - 185
LARGE
180 - 190
X-LARGE
190 - 210
