2. Related Products

1.994 €

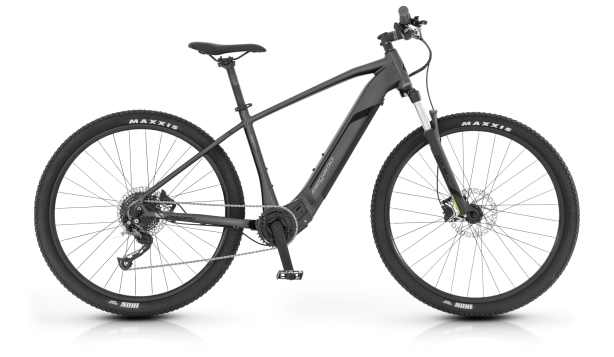

RIDON HT 630 05 2023

KEY FEATURES
· Specific e-Bike aluminum frame, fully integrated battery and central motor.
· Megamo Central Motor M-PW of 250W and 80Nm
· Integrated 630Wh battery
· Suntour 32 XCM ATB fork, 100mm travel, Tapered steerer
· Shimano 9-speed transmission
· Shimano hydraulic brakes and Ø180mm discs
Wheel27,5"29"SizeS
Price1.994 €
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Full Integratted Battery, central motor, tapered 1,5" headtube
Fork Suntour 32 XCM ATB, 100mm
Headset FSA tapered
Electronic components
Motor Megamo Central Motor M-PW 80Nm, 250W, Torque Sensor
Battery Integrated LI-ION Battery, 630 Wh

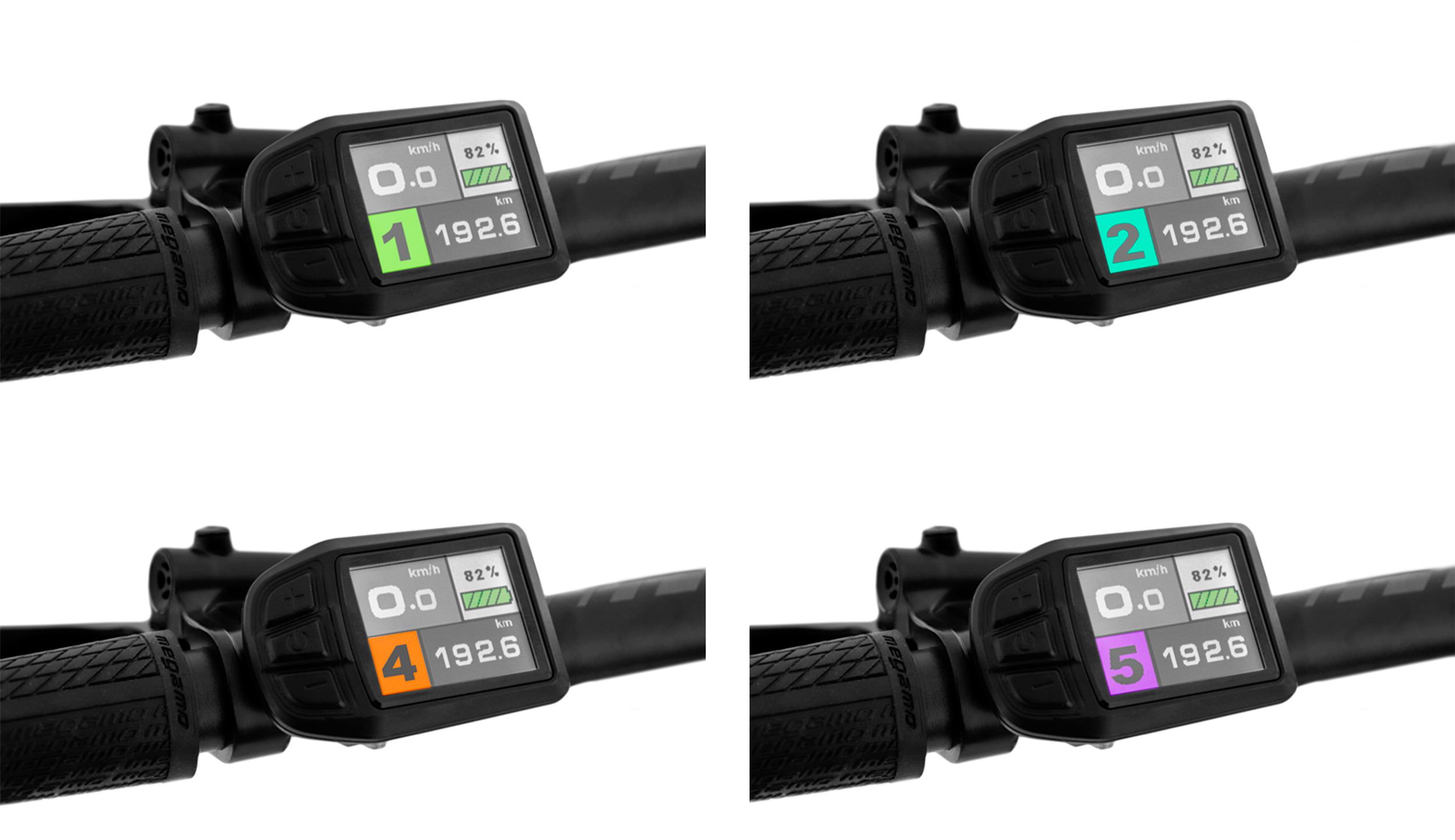

Display LCD Screen panel 5-levels
Drivetrain
Rear Derailleur Shimano Altus 9s
Shifters Shimano Altus 9s
Crankset FSA 36T 104c
Brakes
Brakes Shimano MT200 hydraulic, Rotor disc 180/180mm
Wheels
Tires Schwalbe Johnny Watts 29x2,35 [M,L] ; Vittoria Mezcal 27,5x2,25 [S]
Hubs Formula
Wheels XC one doble wall disc
Components
Handlebar Alloy butted 31,8x720 mm, rise: 12 mm, back sweep: 6º
Stem 3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Seatpost Megamo 30,9mm
Seat Megamo Specific E-Bike+ Saddle

*Due to ongoing problems and delays in the supply chain, Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

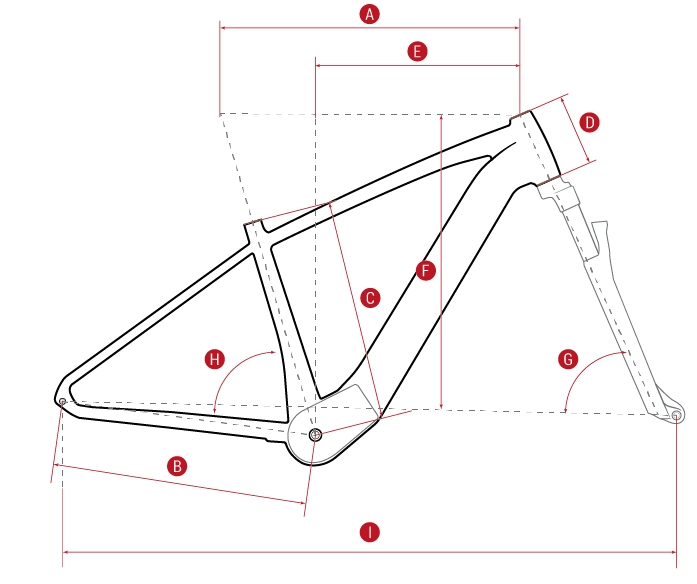

Geometry RIDON HT 630 05 (23)

    27,5" S 29" M 29" L
  SIZE 16 17,5 20
A
T/T 580 600 630
B
C/S 470 485 485
C
S/T 400 450 500
D
H/T 145 140 165
E
REACH 433 416 438
F
STACK 608 633 656
G
FRONT ANGLE 68º 68,5º 68,5º
H
REAR ANGLE 75º 73º 73º
I
WB 1179 1171 1203
