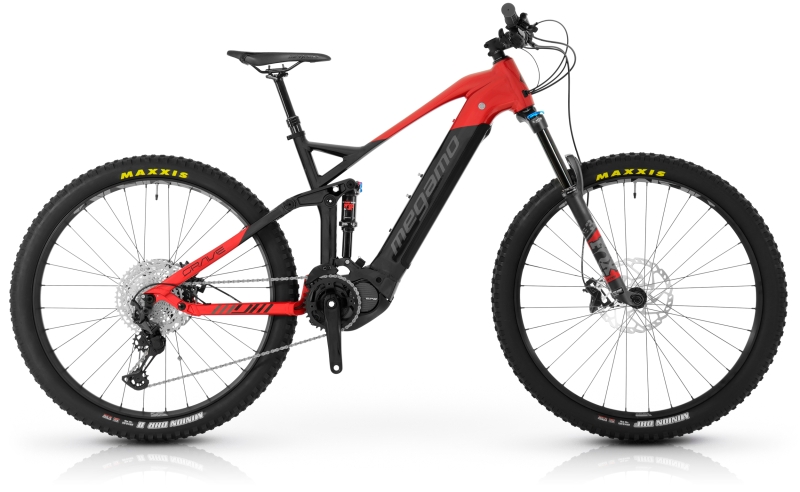

CRAVE AL 05 (22)

· Shimano EP8 250W engine
· 635 Wh built-in battery
· Frame with fully integrated battery and central motor
· FOX 34 Rhythm fork 150mm travel
· FOX Float DPS P-S rear shock
· Shimano Deore 12s transmission
· Shimano MT520 4-piston hydraulic disc brakes
Price0 €
Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.
Calculate your size
Tell us some basic information, we recommend the most appropriate size for your measurements.
I am a...
Fill the field
This result is indicative, if you want a more specific setting we recommend making a fitting with experts.
Previous Next Contact us
Contact your dealer if you need advice
Buy Compare model
Comparator of models

Technical information

Frame Full Integratted Battery, Alloy Triple Butted, 12x148 Boost, Horst Link 4, Wheel travel: 150 mm, Tire clearance 29 x 2.6
Fork FOX 34 Rhythm e-Bike, Float 29, 150mm, grip, sweep-adj, 15QRx110 Boost, 44mm rake
Shock FOX Float DPS, Performance Series, 3pos, Trunnion, Evol LV, 205x65
Headset FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Electronic components
Motor Shimano EP8 250W
Battery Integrated LI-ION Battery, 630 Wh
Display Shimano EP8
Rear Derailleur Shimano Deore 12s
Shifters Shimano Deore 12s
Crankset Shimano 36t
Cassette Shimano Deore 12s 10-51t
Brakes Shimano MT520 hydraulic disc 4-Piston, 203mm
Tires Front: 29x2,6 Maxxis Minion DHF, Rear: 29x2,6 Maxxis Minion DHR II, Tubeless Ready, EXO Protection / Pirelli Scorpion Eduro S HardWALL
Hubs Boost System 15x110 12x148, E-Bike+
Wheels 29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready
Handlebar Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Stem 3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Seatpost Megamo Ø30,9mm Dropper post, remote adjustment
Seat Sellie Italia Model X Superflow

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry CRAVE AL 05 (22)

  S M L
SIZE 16 18 20
T/T 600 620 644
C/S 465 465 465
S/T 406 457 508
H/T 135 140 145
REACH 431 450 474
STACK 630 634 639
BB HEIGHT 370 370 370
FRONT ANGLE 65,3º 65,3º 65,3º
REAR ANGLE 75º 75º 75º
L/T 205x65 TR 205x65 TR 205x65 TR
REAR TRAVEL 150 150 150
WB 1232 1253 1279
