1. Select model and size

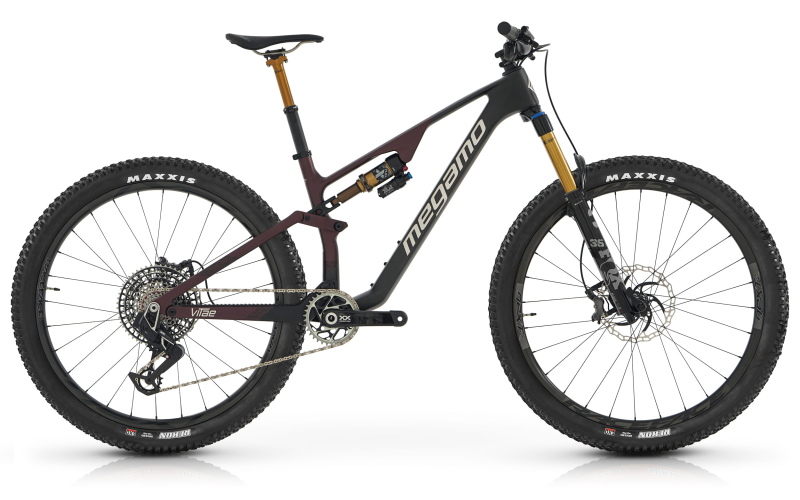

29" - Black
  --
  --
  --

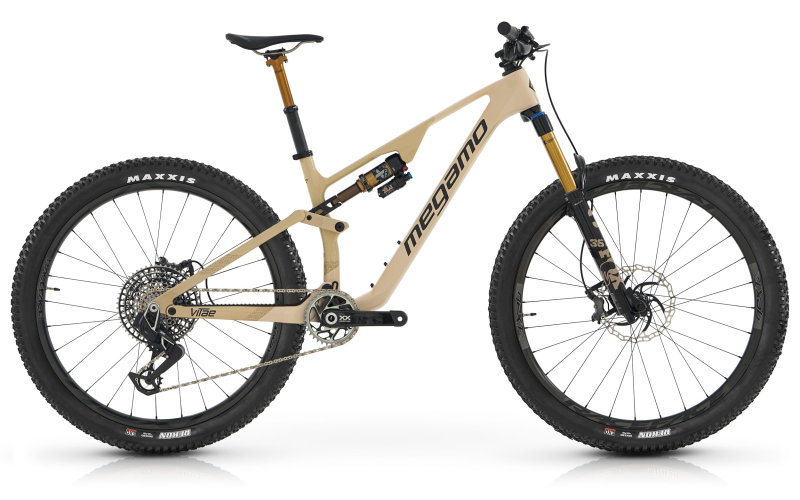

29" - Beige
  --
  --
  --

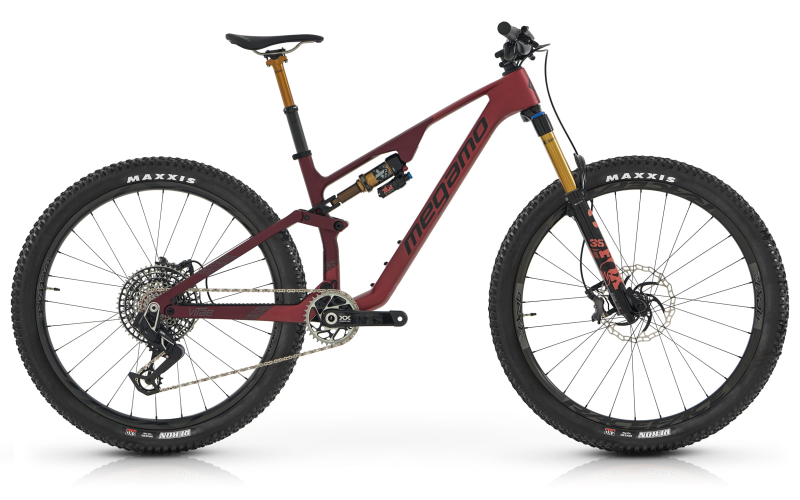

29" - Garnet
  --
  --
  --

2. Related Products

8.999 €

VITAE 01 (24)

KEY FEATURES
· Vitae Full Carbon frame, Boost, 150mm wheel travel
· Fox 36 Factory Kashima fork, 150mm travel
· Fox Float X Kashima rear shock
· Sram XX AXS T-Type 12s transmission
· Shimano XT 4-piston hydraulic disc brakes
· Race Face Next R Carbon wheels
· Fox Transfer SL Kashima dropper seatpost with internal cable routing
Wheel29"SizeSML
Price8.999 €
Buy Compare model
Comparator of models

Technical information

Frameset
Frame Vitae Full Carbon, Boost 12x148mm, Wheel travel: 150mm, Tire clearance 29x2.6
Fork FOX 36 FACTORY, KASHIMA 29, 150mm, Grip 2, 15x110, 44mm Rake
Shock Fox FLOAT X, Factory Series, Kashima 2pos-adj, Evol LV, 210x55
Headset Integrated Full Internal Cable Routing
Drivetrain
Rear Derailleur Sram XX Eagle AXS T-Type 12s
Shifters Sram XX Eagle AXS 12s
Brakes
Brakes Shimano XT M8020 Hydraulic disc 4-Piston, 203mm
Wheels
Tires Maxxis Rekon 29 x 2.6 TR
Wheels 29" RACEFACE, NEXT-R, UD Carbon Composite, Offset Spokes, Matte/Gloss Finish, Height - 34mm, Internal Width 31mm
Components
Handlebar Race Face Next R
Stem Race Face Turbine R
Seatpost Fox Transfer Kashima telescopic seat post, remote adjustment

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry VITAE 01 (24)

    S M L
A
T/T 574 603 638
B
C/S 442 442 442
C
S/T 390 420 455
D
H/T 95 100 115
E
REACH 427 455 487
F
STACK 612 617 631
G
BB OFFSET 30 30 30
H
FRONT ANGLE 65.5º 65.5º 65.5º
I
REAR ANGLE 76.5º 76.5º 76.5º
J
WHEEL BASE 11821212 1250
