1. Select model and size

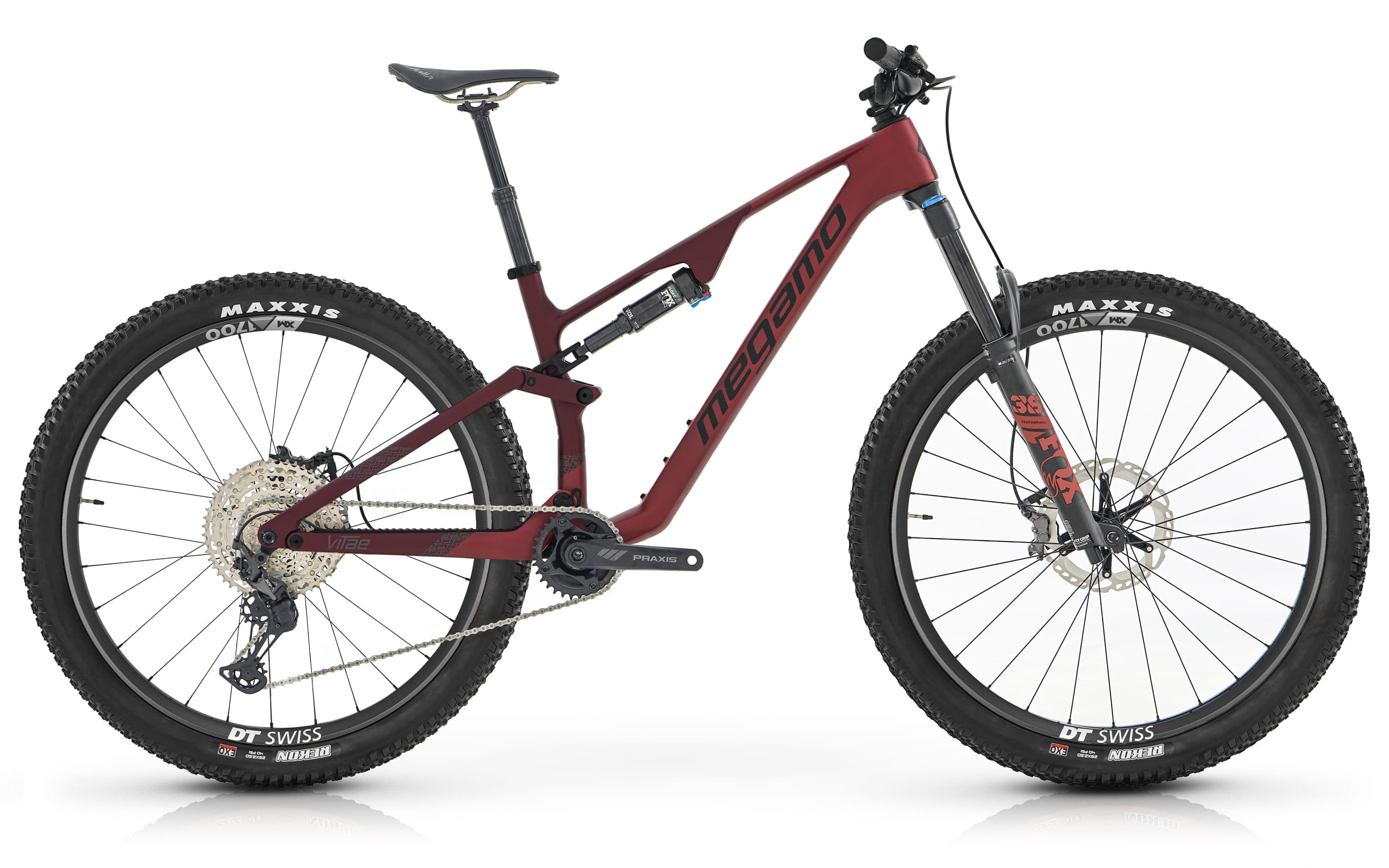

29" - Garnet
  --
  --
  --

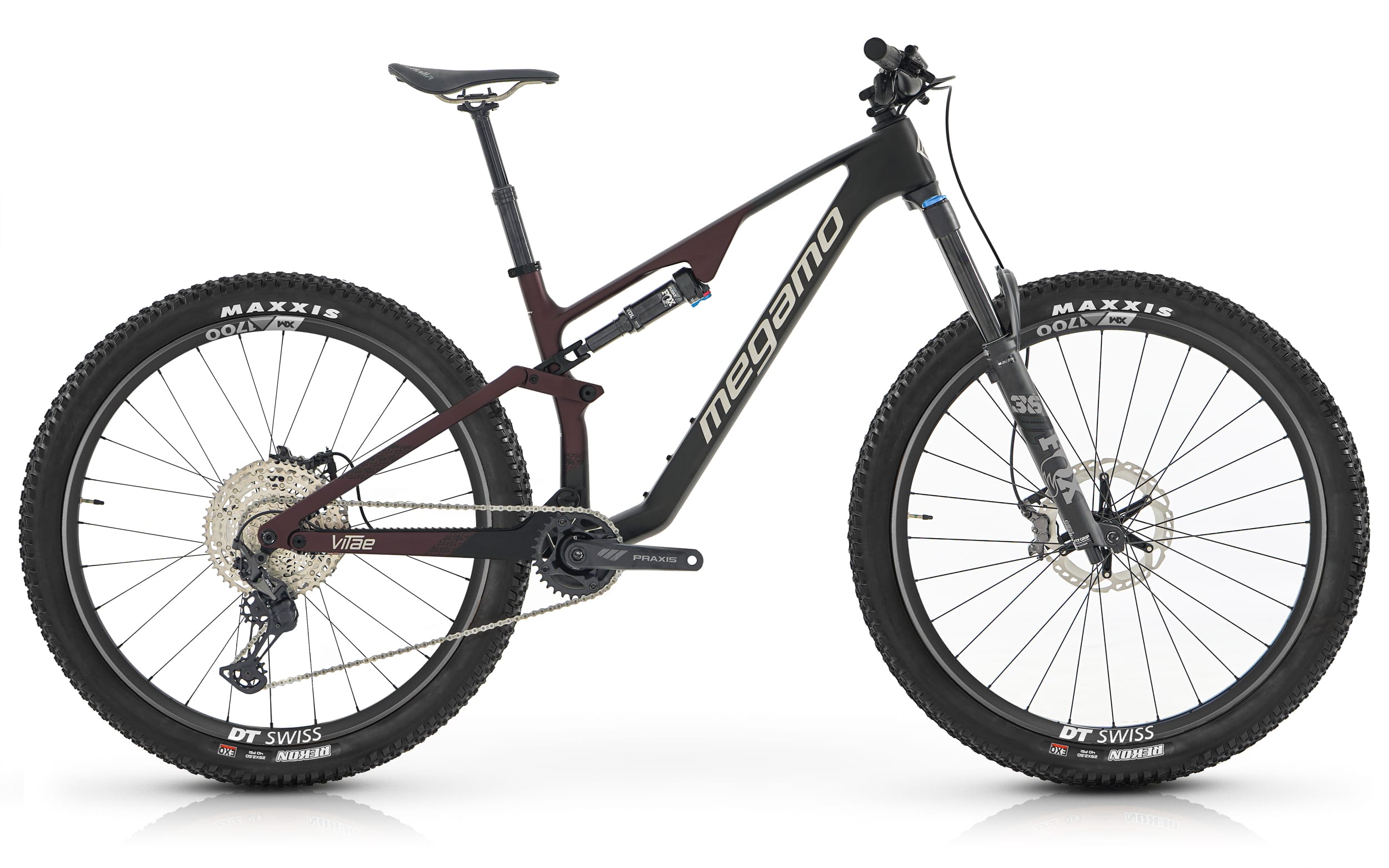

29" - Black
  --
  --
  --

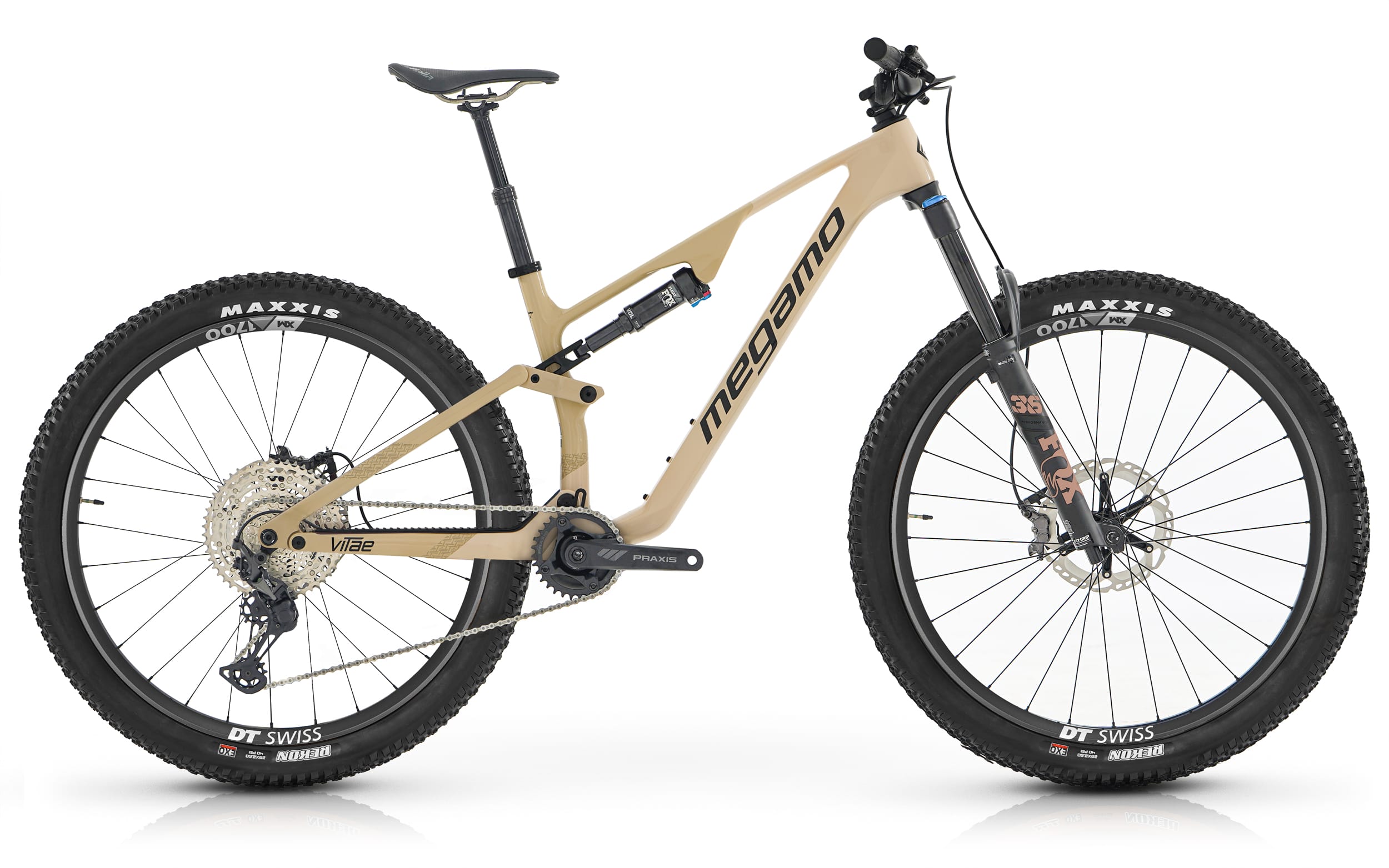

29" - Beige
  --
  --
  --

2. Related Products

5.049 €

VITAE 05 (24)

KEY FEATURES
· Vitae Full Carbon frame, Boost, 150mm wheel travel
· Fox 36 Performance fork, 150mm travel
· Fox Float rear shock
· Shimano XT transmission, 12 speeds
· Shimano XT 4-piston hydraulic disc brakes
· DT Swiss XM 1700 wheels
· Megamo dropper seatpost with internal cable routing
Wheel29"SizeSML
Price5.049 €
Buy Compare model
Comparator of models

Technical information

Frameset
Frame Vitae Full Carbon, Boost 12x148mm, Wheel travel: 150mm, Tire clearance 29x2.6
Fork Fox 36 Performance, 150mm
Shock Fox Float DPS, 3 Position
Headset Integrated Full Internal Cable Routing
Drivetrain
Rear Derailleur Shimano XT 12s
Brakes
Brakes Shimano XT M8020 Hydraulic disc 4-Piston, 203mm
Wheels
Tires Maxxis Rekon 29 x 2.6 TR
Wheels DT Swiss XM 1700
Components
Handlebar Race Face Turbine R
Stem Race Face Aeffect
Seatpost Megamo telescopic seat post, remote adjustment

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry VITAE 05 (24)

    S M L
A
T/T 574 603 638
B
C/S 442 442 442
C
S/T 390 420 455
D
H/T 95 100 115
E
REACH 427 455 487
F
STACK 612 617 631
G
BB OFFSET 30 30 30
H
FRONT ANGLE 65.5º 65.5º 65.5º
I
REAR ANGLE 76.5º 76.5º 76.5º
J
WHEEL BASE 11821212 1250
