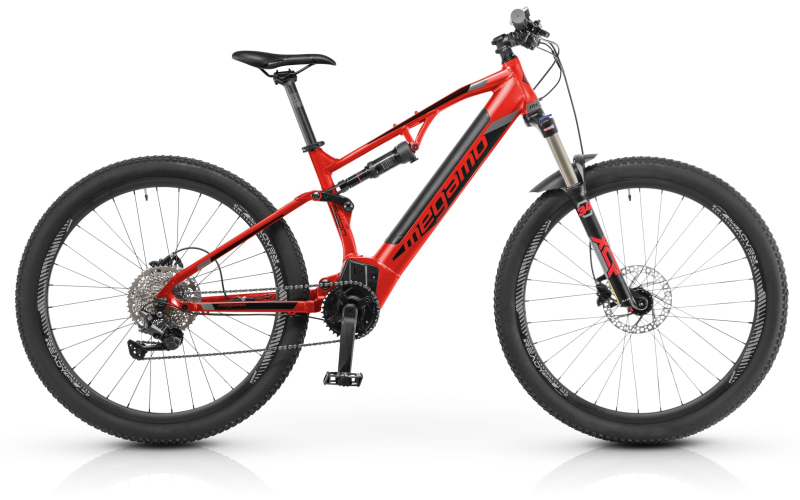

29" - Red
Out of stock
Out of stock
Out of stock

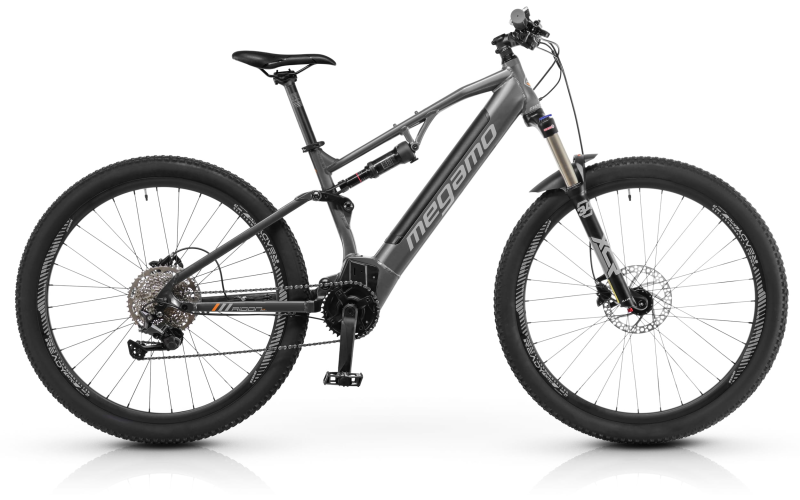

29" - Grey
Out of stock
Out of stock
Out of stock

2. Related Products

2.329 €

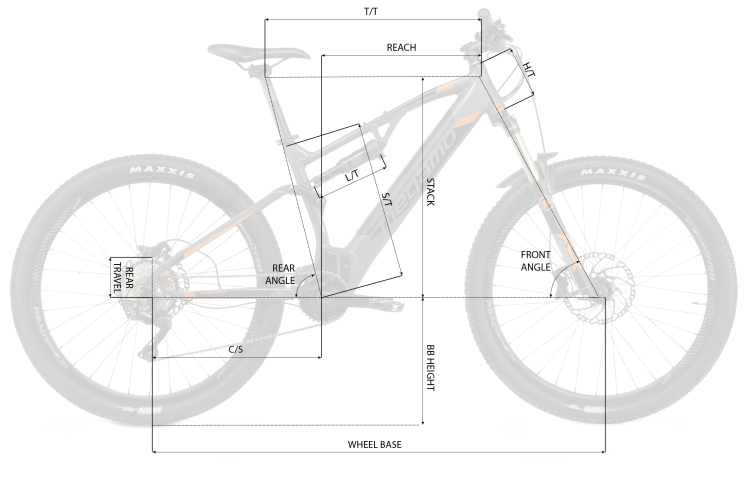

RIDON FS 504 2024

KEY FEATURES
· Frame with fully integrated battery, central motor
· Suntour 34 XCR fork, 130mm travel
· Shimano Deore transmission
· Shimano MT200 brakes
· Megamo 250W and 80Nm Central Motor
· Integrated (easily removable) 504 Wh battery
Wheel29"SizeSML
Price2.329 €
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Full Integratted Battery, central motor, tapered 1,5" headtube
Fork Suntour XCR 34 air, E-Bike+, travel 130mm, BOOST 15x110, Mini-Fender included
Headset FSA tapered
Electronic components
Motor Megamo mid motor 250W 80Nm
Battery integrated (Li-Ion) 36v - 14 Ah - 504 Wh
Display Megamo LCD screen 5 levels
Drivetrain
Rear Derailleur Shimano Deore M5120 10s
Shifters Shimano Deore M4100 10s
Crankset FSA 36T 104c
Brakes
Brakes Shimano MT200 hydraulic disc 180/180
Wheels
Tires 29x2,2
Hubs Formula
Wheels XC one doble wall disc
Components
Handlebar Alloy butted 31,8x720 mm, rise: 12 mm, back sweep: 6º
Stem 3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Seatpost Megamo 30,9mm
Seat Megamo

* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry RIDON FS 504 (24)


  S-29" M-29" L-29"
SIZE 16 17,5 20
T/T 580 600 630
C/S 470 485 485
S/T 400 450 500
H/T 145 140 165
REACH 410 416 438
STACK 608 633 656
FRONT ANGLE 68 68,5 68,5
REAR ANGLE 73º 73º 73º
