3.099 €

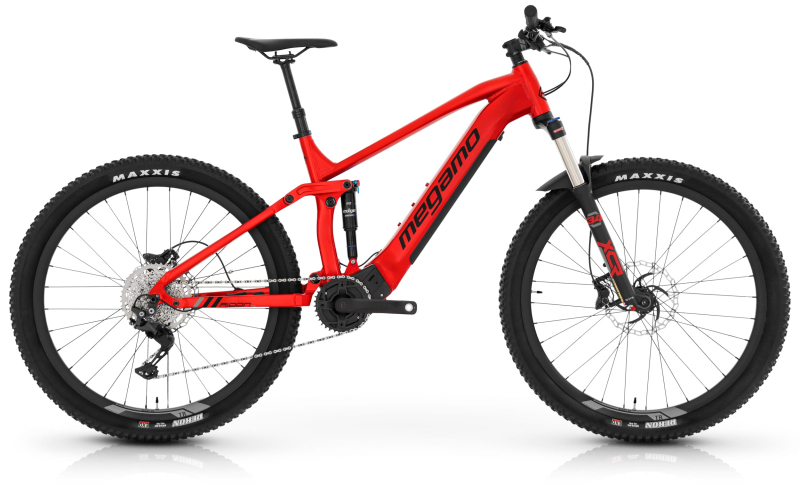

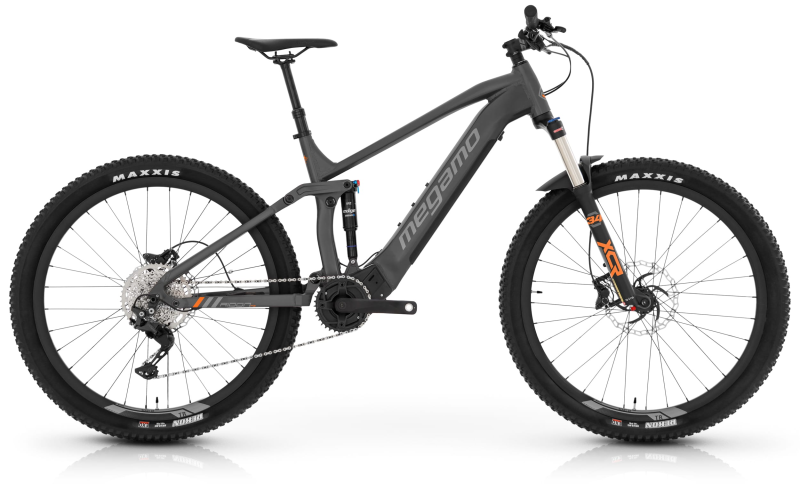

RIDON FS 630 05 2024

KEY FEATURES
· Specific e-Bike aluminum frame, fully integrated battery and central motor.
· Megamo Central Motor M-PW of 250W and 80Nm
· Integrated 630Wh battery
· SUNTOUR XCR 34, 130mm travel, Boost Ø15 thru-axle and Tapered steerer
· Shimano Cues 10s transmission
· Shimano MT420 4-piston brakes and Ø203 discs
Wheel29"SizeSML
Price3.099 €
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Full Integratted Battery, Alloy e-bike specific frame, 12x148 Boost, Wheel travel: 140 mm
Fork Suntour XCR 34 air, E-Bike+, travel 130mm, BOOST 15x110, Mini-Fender included
Shock Suntour RS18 Edge R TRunnion 205x60
Headset FSA Orbit 1,5 E ZS 1-1/8” 1,5”
Electronic components
Motor Megamo Central Motor M-PW 80Nm, 250W, Torque Sensor
Battery Integrated LI-ION Battery, 630 Wh

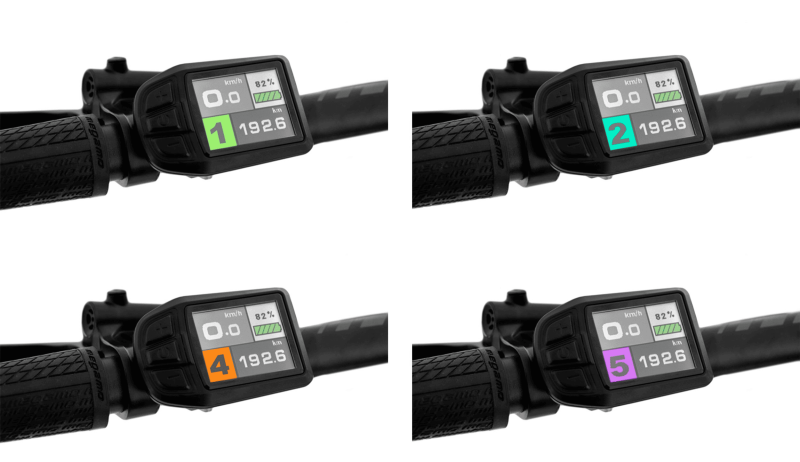

Display LCD Screen panel 5-levels
Drivetrain
Rear Derailleur Shimano CUES 10s
Shifters Shimano CUES 10s
Crankset FSA 36T 104c
Cassette Shimano Deore 11-46T
Brakes
Brakes Shimano MT420 hydraulic disc 4-Piston, 203mm
Wheels
Tires Maxxis Rekon 29 x 2,6 Exo Protection
Wheels 29 Asymmetric 15x110 12x148 Boost Wide:30mm Tubeless Ready
Components
Handlebar Alloy Butted 31,8x780 mm, Rise: 12 mm, Back Sweep: 6º
Stem 3D Forged Alloy, Ext.: 60-70-90 mm, Rise: ±7º
Seatpost Megamo Ø31,8mm Dropper post, remote adjustment
Seat Megamo Specific E-Bike+ Saddle

*Due to ongoing problems and delays in the supply chain, Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry RIDON FS 630 05 (24)

    S M L
  SIZE 16 17,5 20,5
A
T/T 585 605 645
B
C/S 485 485 485
C
S/T 405 460 520
D
H/T 125 140 165
E
REACH 435 451 465
F
STACK 626 640 655
G
FRONT ANGLE 66º 66º 66º
H
REAR ANGLE 76,5º 73,5º 73,5º
I
L/T 205x60 205x60 205x60
J
REAR TRAVEL 140 140 140
K
WB 1245 1268 1312
