1. Select model and size

Alpha Red
Sky Grey
Black

2. Related Products

9.099 €

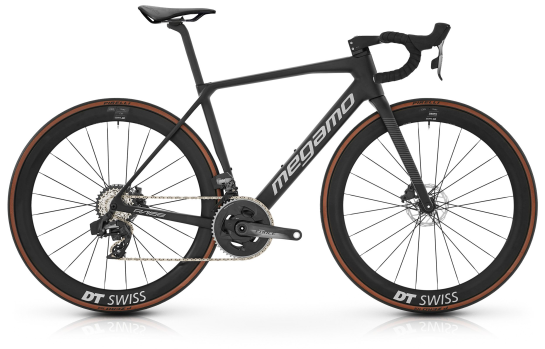

RAISE 01 SH12 (23)

KEY FEATURES
· Ultra light carbon frame with fully internal wiring
· Shimano DURA-ACE Di2 12s transmission
· DT Swiss ARC 1100 50 / Mavic Cosmic SLR 45 wheels
SizeXSSMLXL
DON'T KNOW WHAT SIZE YOU NEED?
Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.
Calculate your size
CALCULATE YOUR SIZE
Tell us some basic information, we recommend the most appropriate size for your measurements.
I am a...
/
Fill the field
This result is indicative, if you want a more specific setting we recommend making a fitting with experts.
Previous Next Contact us
Contact your dealer if you need advice
Buy Compare model
Comparator of models

Technical information

Frameset
Frame Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
Fork Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
Headset Totally Internal Cable routing
Drivetrain
Rear Derailleur Shimano DURA-ACE Di2 R9250 12s
Derailleur Shimano DURA-ACE Di2 R9250 12s
Shifters Shimano DURA-ACE Di2 R9250 12s
Crankset Shimano DURA-ACE Di2 R9200-P 12s 52-36T Powermeter
Cassette Shimano DURA-ACE Di2 R9200 12s 11-30T
Brakes
Brakes Shimano DURA-ACE Di2 R9270 12s Hydraulic Disc
Wheels
Tires Vittoria Corsa 28-622 fold para-blk-blk G2.0
Hubs DT Swiss ARC 1100 50 / Mavic Cosmic SLR 45
Wheels DT Swiss ARC 1100 50 / Mavic Cosmic SLR 45
Components
Handlebar Carbon Full Integratted Internal Cable Routing: 90/400 (XS,S), 100/400 (S,M), 110/420 (M,L), 120/440 (L,XL)
Seatpost Aerodinamic Advanced Carbon Seat Post
Seat Selle Italia SLR Boost Superflow Carbon

We reserve the right to modify the information on the website without prior notice, including specifications, models, colors and materials.

Geometry RAISE 01 SH12 (23)

    XS S M L XL
A
T/T 507 523 541 559 576
B
C/S 405 405 405 405 405
C
S/T 422 453 473 499 525
D
H/T 103 116 135 156 176
E
REACH 357 369 381 393 405
F
STACK 505 522 541 560 580
G
BB HEIGHT 270 270 270 270 270
H
FRONT ANGLE 70,5º 72º 72º 72º 72º
I
REAR ANGLE 73,5º 73,5º 73,5º 73,5º 73,5º
HANDLEBAR AND STEM INTEGRATED:
    XS S M L XL
  90/400 - - -
  100/400 - - -
  110/420 - - -
  120/440 - - -

FIT GUIDE
X-SMALL
158 - 168
SMALL
165 - 172
MEDIUM
170 - 182
LARGE
182 - 190
X-LARGE
188 - 210
